LDE02-23B24, LDE02-23B03 - Ultra small size AC/DC converter

MORNSUN

The LDE02-23B24 by MORNSUN is a Ultra small size AC/DC converter. Below is the official datasheet preview.

📥 Download Datasheet

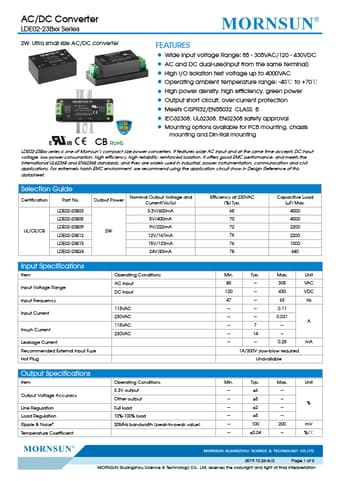

LDE02-23B24 Ultra small size AC/DC converter by MORNSUN - Datasheet Preview — Official preview page of the LDE02-23B24 Ultra small size AC/DC converter datasheet (MORNSUN).

Datasheet Details

Part number	LDE02-23B24, LDE02-23B03
Manufacturer	MORNSUN
File Size	1.53 MB
Description	Ultra small size AC/DC converter
Datasheet	LDE02-23B03-MORNSUN.pdf
Note	This datasheet PDF includes multiple part numbers: LDE02-23B24, LDE02-23B03. Please refer to the document for exact specifications by model.
Additional preview pages of the LDE02-23B24 datasheet.

LDE02-23B24 Product details

Features

Wide Input voltage Range: 85 - 305VAC/120 - 430VDC.
AC and DC dual-use(input from the same terminal).
High I/O isolation test voltage up to 4000VAC.
Operating ambient temperature range: -40℃ to +70℃.
High power density, high efficiency, green power.
Output short circuit, over-current protection.
Meets CISPR32/EN55032 CLASS B.
IEC62368, UL62368, EN62368 safety approval CB RoHS.
Mounting options available for PCB mounting, chassis mounting an.
