IB2409LS-1W - ISOLATED & REGULATED SINGLE OUTPUT DC-DC CONVERTER

Download the IB2409LS-1W datasheet PDF. This datasheet also covers the IB2405LD-1W variant, as both devices belong to the same isolated & regulated single output dc-dc converter family and are provided as variant models within a single manufacturer datasheet.

Features

  • l Small Footprint l SIP/DIP Package l 1KVDC Isolation l Temperature Range: -40°C to +85°C l No Heat sink Required l Internal SMD Construction l No External Component Required l Industry Standard Pinout l RoHS Compliance Patent Protection RoHS MODEL.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IB2405LD-1W-MORNSUN.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number IB2409LS-1W
Manufacturer MORNSUN
File Size 495.64 KB
Description ISOLATED & REGULATED SINGLE OUTPUT DC-DC CONVERTER
Datasheet download datasheet IB2409LS-1W Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IB24xxD-2W DC/DC Converter YUAN
IB24xxS-2W DC/DC Converter YUAN
IB235 (IB235 / IB290) GAS Infrared Booster HOBART
IB235 Bosch Replacement Tegulator Transpo
IB290 (IB235 / IB290) GAS Infrared Booster HOBART

Other Datasheets by MORNSUN

Part Number Description
IB2409LS FIXED INPUT ISOLATED & REGULATED 1W SINGLE OUTPUT MINIATURE SIP/DIP PACKAGE
IB2409LD-1W ISOLATED & REGULATED SINGLE OUTPUT DC-DC CONVERTER
IB2405LD-1W ISOLATED & REGULATED SINGLE OUTPUT DC-DC CONVERTER
IB2405LS FIXED INPUT ISOLATED & REGULATED 1W SINGLE OUTPUT MINIATURE SIP/DIP PACKAGE
IB2405LS FIXED INPUT ISOLATED & REGULATED 1W SINGLE OUTPUT MINIATURE SIP/DIP PACKAGE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

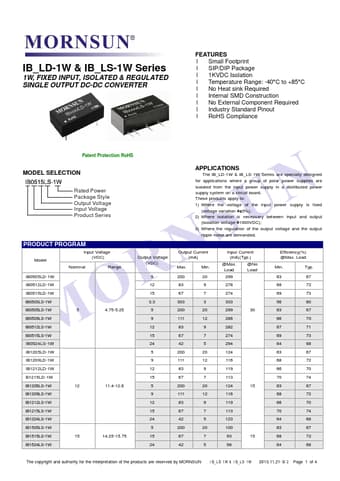

IB_LD-1W & IB_LS-1W Series 1W, FIXED INPUT, ISOLATED & REGULATED SINGLE OUTPUT DC-DC CONVERTER FEATURES l Small Footprint l SIP/DIP Package l 1KVDC Isolation l Temperature Range: -40°C to +85°C l No Heat sink Required l Internal SMD Construction l No External Component Required l Industry Standard Pinout l RoHS Compliance Patent Protection RoHS MODEL SELECTION Rated Power Package Style Output Voltage Input Voltage Product Series APPLICATIONS The IB_LD-1W & IB_LS-1W Series are specially designed for applications where a group of polar power supplies are isolated from the input power supply in a distributed power supply system on a circuit board.
Published: |
