IB1215XT-1WR2, IB1205XT-1WR2 - DC/DC Module Power Supply

Name: IB1215XT-1WR2
SKU: IB1215XT-1WR2-1552905

MORNSUN

The IB1215XT-1WR2 by MORNSUN is a DC/DC Module Power Supply. Below is the official datasheet preview.

Datasheet Details

Part number	IB1215XT-1WR2, IB1205XT-1WR2
Manufacturer	MORNSUN
File Size	920.27 KB
Description	DC/DC Module Power Supply
Datasheet	IB1205XT-1WR2-MORNSUN.pdf
Note	This datasheet PDF includes multiple part numbers: IB1215XT-1WR2, IB1205XT-1WR2. Please refer to the document for exact specifications by model.

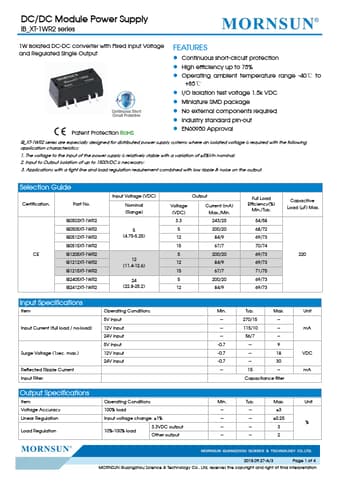

Additional preview pages of the IB1215XT-1WR2 datasheet.

Continuous short-circuit protection.
High efficiency up to 75%.
Operating ambient temperature range -40℃ to +85℃ Patent Protection RoHS.
I/O isolation test voltage 1.5k VDC.
Miniature SMD package.
No external components required.
Industry standard pin-out.
EN60950 Approval IB_XT-1WR2 series are especially designed for distributed power supply systems where an isolated voltage is required with the following.
