A2412S-2W, A2405S-2W DUAL/SINGLE OUTPUT DC-DC CONVERTER

A2412S-2W Description

A_S-2W & B_S-2W Series 2W, FIXED INPUT, ISOLATED & UNREGULATED DUAL/SINGLE OUTPUT DC-DC CONVERTER PRODUCT .

A2412S-2W Features

* High efficiency up to 86%
* 1KVDC Isolation
* SIP package
* High Power Density
* Internal SMD construction
* Temperature range: -40°C ~ +85°C
* No heat sink required
* No external component required
* Industry standard pinout
* RoHS Compliance RoHS MODEL SE

A2412S-2W Applications

* The A_S-2W & B_S-2W Series are specially designed for applications where a group of polar power supplies are isolated from the input power supply in a distributed power supply system on a circuit board. These products apply to: 1) Where the voltage of the input power supply is fixed (voltage variati

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: A2412S-2W, A2405S-2W. Please refer to the document for exact specifications by model.

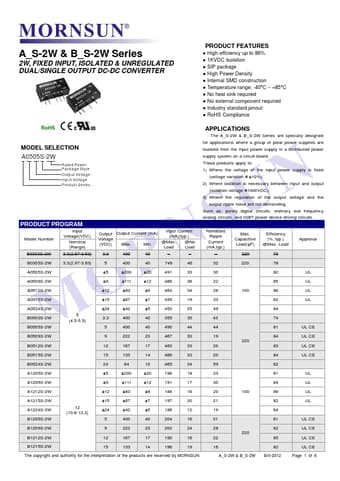

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A2412S-2W, A2405S-2W
Manufacturer
MORNSUN
File Size
582.84 KB
Datasheet
A2405S-2W-MORNSUN.pdf
Description
DUAL/SINGLE OUTPUT DC-DC CONVERTER
Note
This datasheet PDF includes multiple part numbers: A2412S-2W, A2405S-2W.
Please refer to the document for exact specifications by model.
