A0509S-1WR3, A0503S-1WR3 - DC/DC Converter

A0509S-1WR3 Description

DC/DC Converter A05_S-1WR3 & B05_LS-1WR3 Series 1W isolated DC-DC converter Fixed input voltage and unregulated dual/single output Patent Protection .
of reflected ripple current test method.

A0509S-1WR3 Features

* Continuous short-circuit protection
* No-load input current as low as 5mA
* Operating temperature range: -40℃ ~ +105℃
* High efficiency up to 85%
* I/O isolation test voltage 1.5k VDC
* Industry standard pin-out
* SIP package
* UL62368, EN62368 approved A05_S-1WR3

A0509S-1WR3 Applications

* where an isolated (two isolated) voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Selection Guide Input Voltage(VDC) Output Certification Part No. Nominal (R

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: A0509S-1WR3, A0503S-1WR3. Please refer to the document for exact specifications by model.

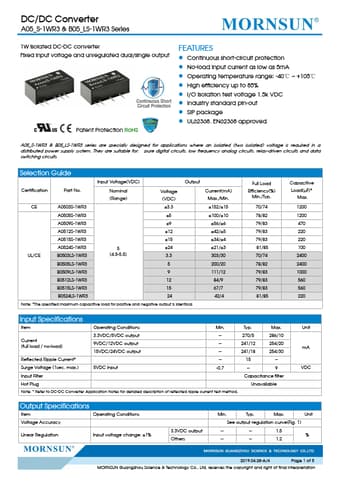

datasheet Preview Page 2 datasheet Preview Page 3
