MSC0203S - N/P-Channel Power MOSFET

📥 Download Datasheet

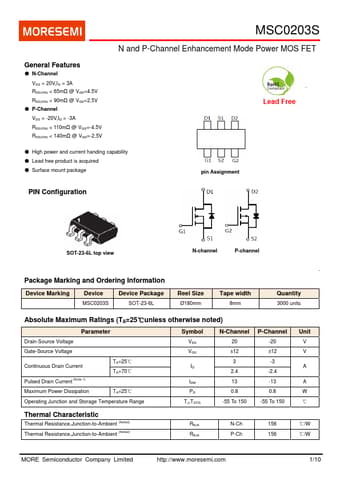

MSC0203S Datasheet Preview — Preview of MSC0203S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MSC0203S
Manufacturer	MORESEMI
File Size	469.49 KB
Description	N/P-Channel Power MOSFET
Datasheet	MSC0203S-MORESEMI.pdf

MSC0203S Product details

Features

N-Channel VDS = 20V,ID = 3A RDS(ON) < 65mΩ @ VGS=4.5V RDS(ON) < 90mΩ @ VGS=2.5V.
P-Channel VDS = -20V,ID = -3A RDS(ON) < 110mΩ @ VGS=-4.5V RDS(ON) < 140mΩ @ VGS=-2.5V Lead Free.
High power and current handing capability.
Lead free product is acquired.
Surface mount package pin Assignment PIN Configuration SOT-23-6L top view N-channel P-channel Package Marking and Ordering Information Device Marking Device MSC0203S Device Package SOT-23-6L Reel Size Ø180mm T.
