24HS1003N - STEPPING MOTOR

Download the 24HS1003N datasheet PDF. This datasheet also covers the 24HS1001N variant, as both devices belong to the same stepping motor family and are provided as variant models within a single manufacturer datasheet.

Features

  • Very High Torque.
  • Smooth Movement.
  • Low Speed I General Specifications.
  • Bi-polar Series & Length Model Number 24HS1 44 mm (1.73 in. ) 24HS2 54 mm (2.13 in. ) 24HS3 65 mm (2.56 in. ) 24HS5 85 mm (3.35 in. ) 24HS1001N 24HS1002N 24HS1003N 24HS2002N 24HS2001N 24HS3003N 24HS3004N 24HS5001N 24HS5002N 24HS5003N Holding Torque mNm oz-in 1100 155.9 1100 155.9 1100 155.9 1400 198.4 1800 255.1 2100 297.6 2100 297.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (24HS1001N-MOONS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 24HS1003N
Manufacturer MOONS
File Size 163.01 KB
Description STEPPING MOTOR
Datasheet download datasheet 24HS1003N Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
24HS1402N Hybrid Stepper Motors ETC
24HS1403N Hybrid Stepper Motors ETC
24HS1404N Hybrid Stepper Motors ETC
24HS1428 2 Phase Hybrid Stepper Motor MotionKing
24HS1442 2 Phase Hybrid Stepper Motor MotionKing

Other Datasheets by MOONS

Part Number Description
24HS1003-01N STEPPING MOTOR
24HS1001N STEPPING MOTOR
24HS1002-01N STEPPING MOTOR
24HS1002N STEPPING MOTOR
24HS1004N STEPPING MOTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

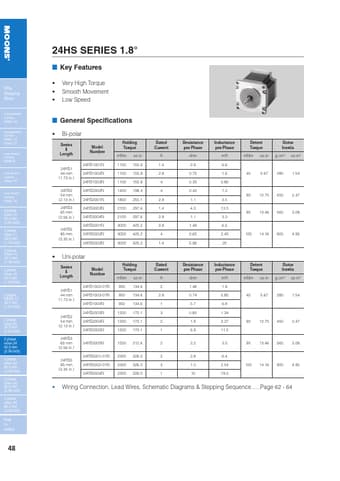

Why Stepping Motor encapsulated 2 phase NEMA 14 encapsulated 3 phase NEMA 14 NEMA 17 new release 2 phase NEMA 8 new release 2 phase NEMA 14 new release 2 phase NEMA 16 2 phase NEMA 10 25.0 mm (1.00 inch) 2 phase NEMA 11 28.0 mm (1.10 inch) 2 phase NEMA 14 35.0 mm (1.38 inch) 2 phase NEMA 16 39.0 mm (1.53 inch) 2 phase NEMA 17 42.0 mm (1.65 inch) 2 phase NEMA 23 56.0 mm (2.22 inch) 2 phase NEMA 24 60.0 mm (2.36 inch) 2 phase NEMA 34 86.0 mm (3.39 inch) 3 phase NEMA 24 60.0 mm (2.36 inch) 3 phase NEMA 34 86.0 mm (3.39 inch) how to select 48 24HS SERIES 1.8° I Key Features • Very High Torque • Smooth Movement • Low Speed I General Specifications • Bi-polar Series & Length Model Number 24HS1 44 mm (1.73 in.) 24HS2 54 mm (2.13 in.) 24HS3 65 mm (2.56 in.) 24HS5 85 mm (3.35 in.
