MD3905 - (MD3902 - MD3910) 2/5/10MHz V/F Converters

Product Overview

📥 Download Datasheet

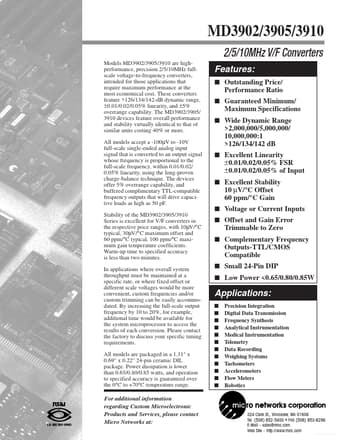

MD3905 (MD3902 - MD3910) 2/5/10MHz V/F Converters by MNC - Datasheet Preview — Datasheet preview – MD3905

Datasheet Details

Part number	MD3905
Manufacturer	MNC
File Size	120.99 KB
Description	(MD3902 - MD3910) 2/5/10MHz V/F Converters
Datasheet	MD3905 Datasheet
Additional preview pages of the MD3905 datasheet.

Product details

Features

s Outstanding Price/ Performance Ratio s Guaranteed Minimum/ Maximum Specifications s Wide Dynamic Range >2,000,000/5,000,000/ 10,000,000:1 >126/134/142 dB s Excellent Linearity ±0.01/0.02/0.05% FSR ±0.01/0.02/0.05% of Input 10 µV/°C Offset 60 ppm/°C Gain s Excellent Stability s Voltage or Current Inputs s Offset and Gain Error Trimmable to Zero s Complementary Frequency Outputs-TTL/CMOS Compatible s Small 24-Pin DIP s Low Power.
