MM3243D - CMOS Regulator

Product Overview

MITSUMI

📥 Download Datasheet

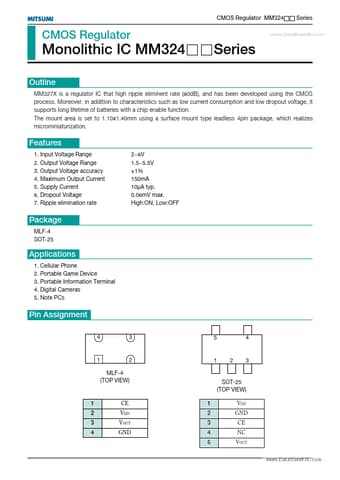

MM3243D CMOS Regulator by MITSUMI - Datasheet Preview — Datasheet preview – MM3243D

Datasheet Details

Part number	MM3243D
Manufacturer	MITSUMI
File Size	87.58 KB
Description	CMOS Regulator
Datasheet	MM3243D Datasheet
Note	This datasheet PDF includes multiple part numbers: MM3243D, MM324. Please refer to the document for exact specifications by model.
Additional preview pages of the MM3243D datasheet.

Product details

Features

1. Input Voltage Range 2. Output Voltage Range 3. Output Voltage accuracy 4. Maximum Output Current 5. Supply Current 6. Dropout Voltage 7. Ripple elimination rate 2~6V 1.5~5.5V ±1% 150mA 10µA typ. 0.06mV max. High:ON, Low:OFF Package MLF-4 SOT-25.
