MM3241G, MM324 - CMOS Regulator

Name: MM3241G
SKU: MM3241G-1261087

MITSUMI

The MM3241G by MITSUMI is a CMOS Regulator. Below is the official datasheet preview.

Datasheet Details

Part number	MM3241G, MM324
Manufacturer	MITSUMI
File Size	87.58 KB
Description	CMOS Regulator
Datasheet	MM324_MITSUMI.pdf
Note	This datasheet PDF includes multiple part numbers: MM3241G, MM324. Please refer to the document for exact specifications by model.

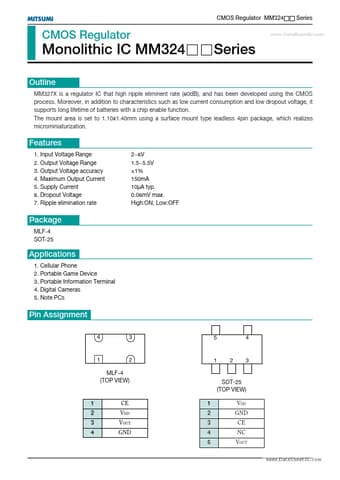

Additional preview pages of the MM3241G datasheet.

1. Input Voltage Range 2. Output Voltage Range 3. Output Voltage accuracy 4. Maximum Output Current 5. Supply Current 6. Dropout Voltage 7. Ripple elimination rate 2~6V 1.5~5.5V ±1% 150mA 10µA typ. 0.06mV max. High:ON, Low:OFF Package MLF-4 SOT-25.
