E45-005-xxxxx, E45 - USB Series Mini-B Connectors

MITSUMI

📥 Download Datasheet

E45-005-xxxxx Datasheet Preview — This datasheet PDF includes multiple part numbers: E45-005-xxxxx, E45. Please refer to the document for exact specifications by model.

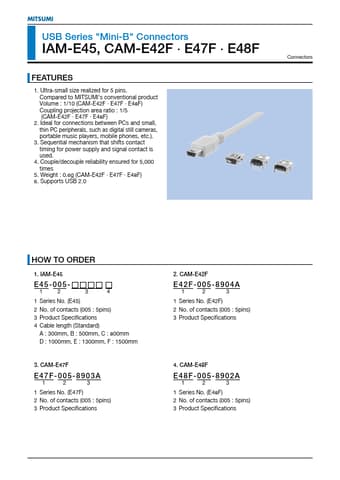

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	E45-005-xxxxx, E45
Manufacturer	MITSUMI
File Size	179.07 KB
Description	USB Series Mini-B Connectors
Datasheet	E45_MITSUMI.pdf
Note	This datasheet PDF includes multiple part numbers: E45-005-xxxxx, E45. Please refer to the document for exact specifications by model.

E45-005-xxxxx Product details

Features

1. Ultra-small size realized for 5 pins. Compared to MITSUMl's conventional product Volume : 1/10 (CAM-E42F.
E47F.
E48F) Coupling projection area ratio : 1/5 (CAM-E42F.
E47F.
E48F) 2. Ideal for connections between PCs and small, thin PC peripherals, such as digital still cameras, portable music players, mobile phones, etc. ). 3. Sequential mechanism that shifts contact timing for power supply and signal contact is used. 4. Couple/decouple reliability ensured for 5,000 times 5.
