MDW1013 - Single & Dual Output DC/DC Converters

Product Overview

📥 Download Datasheet

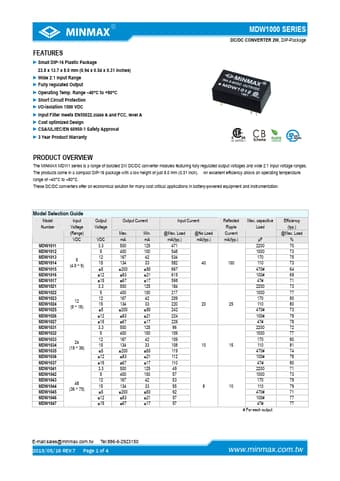

MDW1013 Single & Dual Output DC/DC Converters by MINMAX - Datasheet Preview — Datasheet preview – MDW1013

Datasheet Details

Part number	MDW1013
Manufacturer	MINMAX
File Size	282.40 KB
Description	Single & Dual Output DC/DC Converters
Datasheet	MDW1013 Datasheet
Note	This datasheet PDF includes multiple part numbers: MDW1013, MDW1011. Please refer to the document for exact specifications by model.
Additional preview pages of the MDW1013 datasheet.

Product details

Features

Small DIP-16 Plastic Package 23.8 x 13.7 x 8.0 mm (0.94 x 0.54 x 0.31 inches) Wide 2:1 Input Range Fully regulated Output Operating Temp. Range.
40°C to +80°C Short Circuit Protection I/O-isolation 1500 VDC Input Filter meets EN55022,class A and FCC, level A Cost optimized Design CSA/UL/IEC/EN 60950-1 Safety Approval 3 Year Product Warranty MDW1000 SERIES DC/DC.
