MD8536 - CMOS Voltage Regulator

Product Overview

MINGDA MICROTRONICS

Datasheet Details

Part number	MD8536
Manufacturer	MINGDA MICROTRONICS
File Size	1.12 MB
Description	CMOS Voltage Regulator
Datasheet	MD8536 Datasheet
Note	This datasheet PDF includes multiple part numbers: MD8536, MD8530. Please refer to the document for exact specifications by model.
Additional preview pages of the MD8536 datasheet.

Product details

Description

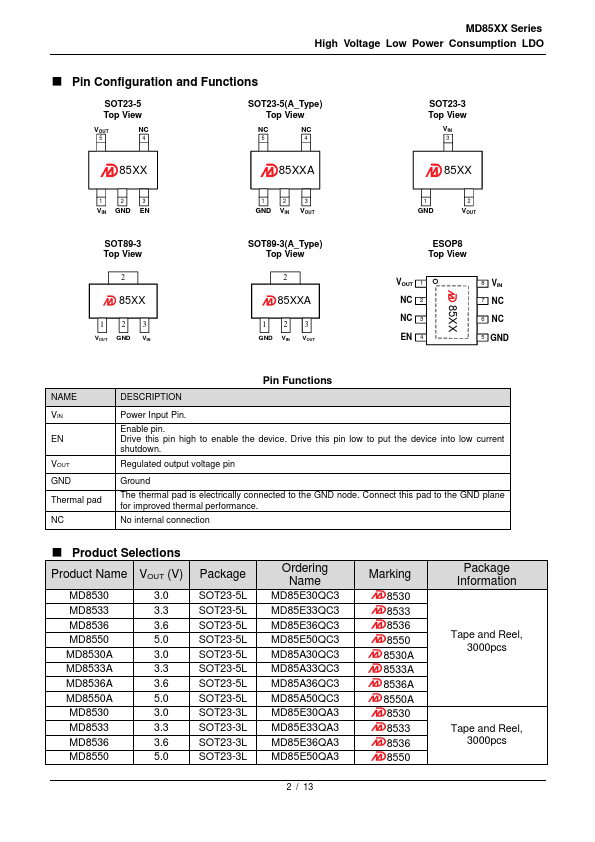

Power Input Pin. Product Selections Product Name VOUT (V) MD8530 3.0 MD8533 3.3 MD8536 3.6 MD8550 5.0 MD8530A 3.0 MD8533A 3.3 MD8536A 3.6 MD8550A 5.0 MD8530 3.0 MD8533

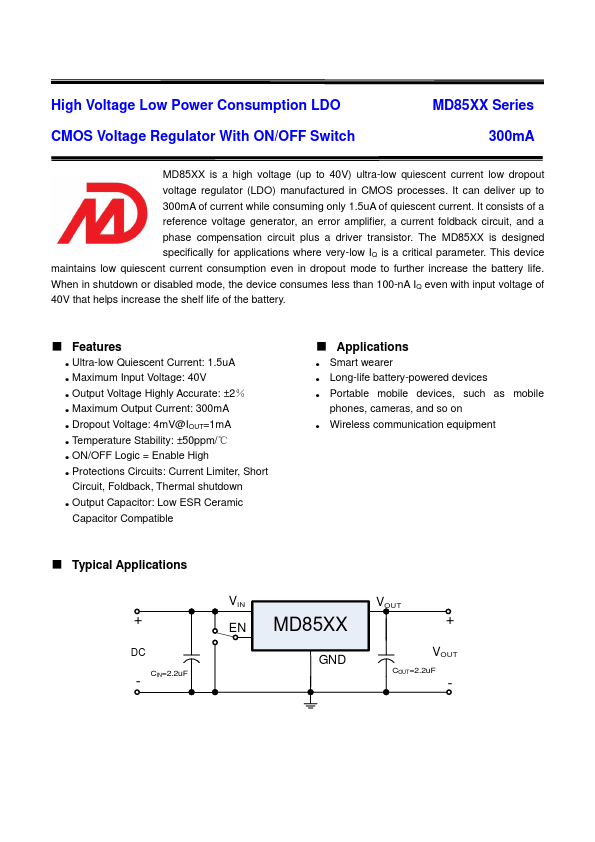

Features

s.
Ultra-low Quiescent Current: 1.5uA.
Maximum Input Voltage: 40V.
Output Voltage Highly Accurate: ±2％.
Maximum Output Current: 300mA.
Dropout Voltage: 4mV@IOUT=1mA.
Temperature Stability: ±50ppm/℃.
ON/OFF Logic = Enable High.
Protections Circuits: Current Limiter, Short Circuit, Foldback, Thermal shutdown.
Output Capacitor: Low ESR Ceramic Capacitor Compatible.
