MD7612F36 - CMOS Voltage Regulator

Product Overview

MINGDA MICROTRONICS

Datasheet Details

Part number	MD7612F36
Manufacturer	MINGDA MICROTRONICS
File Size	1.17 MB
Description	CMOS Voltage Regulator
Datasheet	MD7612F36 Datasheet
Note	This datasheet PDF includes multiple part numbers: MD7612F36, MD7612. Please refer to the document for exact specifications by model.
Additional preview pages of the MD7612F36 datasheet.

Product details

Description

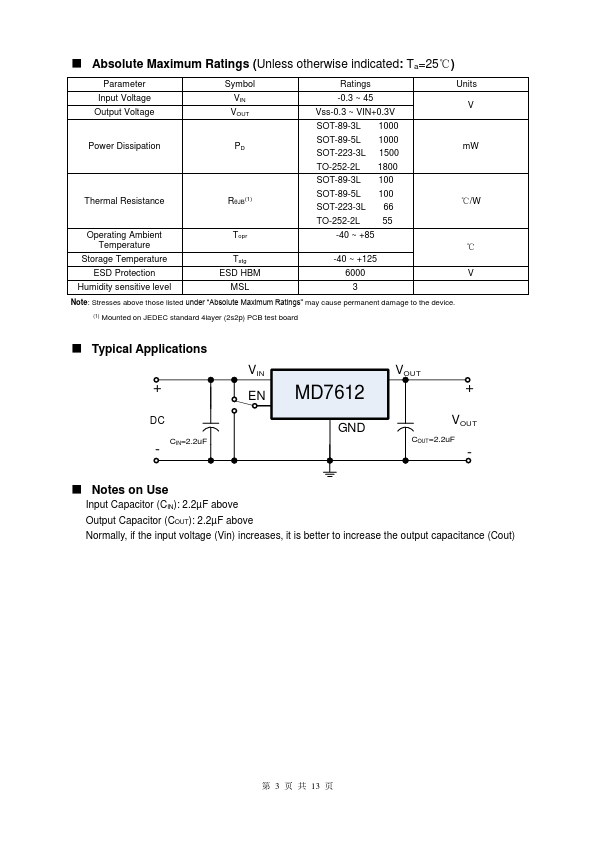

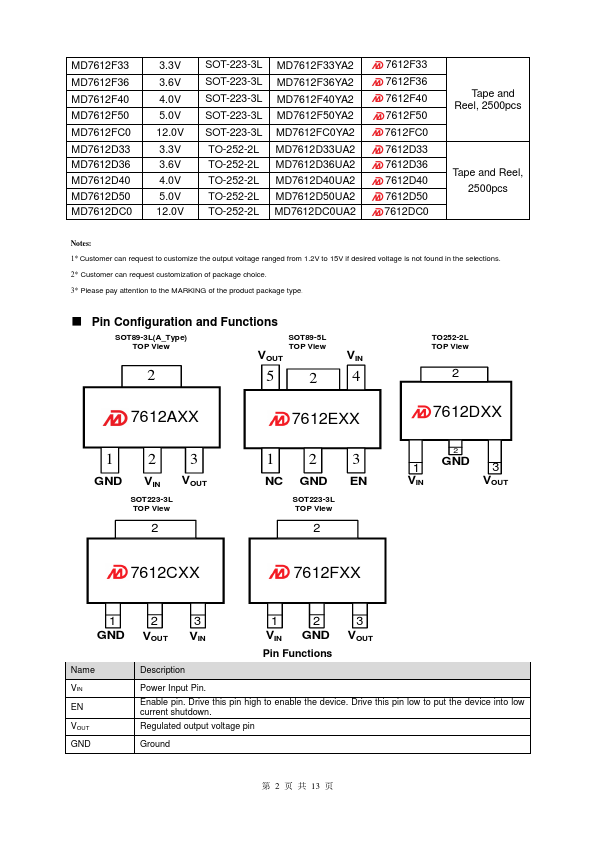

Power Input Pin. Absolute Maximum Ratings (Unless otherwise indicated: Ta=25℃) Parameter Input Voltage Output Voltage Power Dissipation Thermal Resistance Operating Ambient Temperature Storage Temperature ESD Protection Symbol VIN VOUT PD RθJB(1) Topr Tstg ESD HBM Ratings -0.3 ~ 45 Vss-0.3 ~ VIN+0.3V SOT-89-3L 1000 SOT-89-

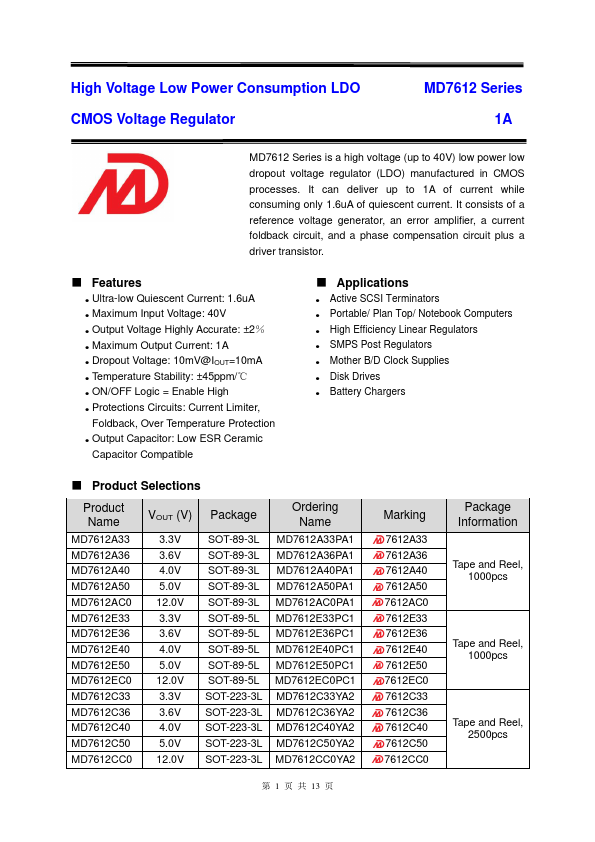

Features

s.
Ultra-low Quiescent Current: 1.6uA.
Maximum Input Voltage: 40V.
Output Voltage Highly Accurate: ±2％.
Maximum Output Current: 1A.
Dropout Voltage: 10mV@IOUT=10mA.
Temperature Stability: ±45ppm/℃.
ON/OFF Logic = Enable High.
Protections Circuits: Current Limiter, Foldback, Over Temperature Protection.
Output Capacitor: Low ESR Ceramic Capacitor Compatible.
