MD7601A33 - CMOS Voltage Regulator

Product Overview

MINGDA MICROTRONICS

📥 Download Datasheet

MD7601A33 CMOS Voltage Regulator by MINGDA MICROTRONICS - Datasheet Preview — Datasheet preview – MD7601A33

Datasheet Details

Part number	MD7601A33
Manufacturer	MINGDA MICROTRONICS
File Size	1.20 MB
Description	CMOS Voltage Regulator
Datasheet	MD7601A33 Datasheet
Note	This datasheet PDF includes multiple part numbers: MD7601A33, MD7601A30. Please refer to the document for exact specifications by model.

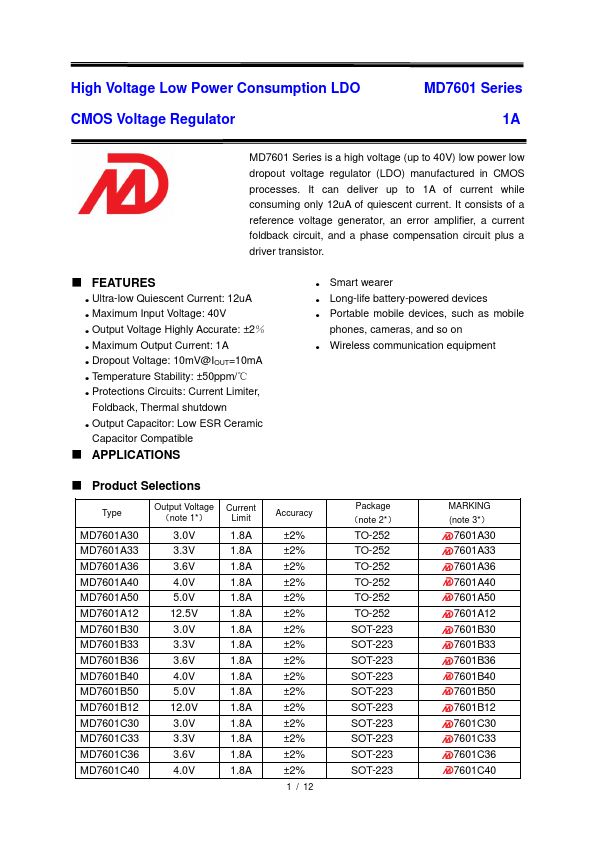

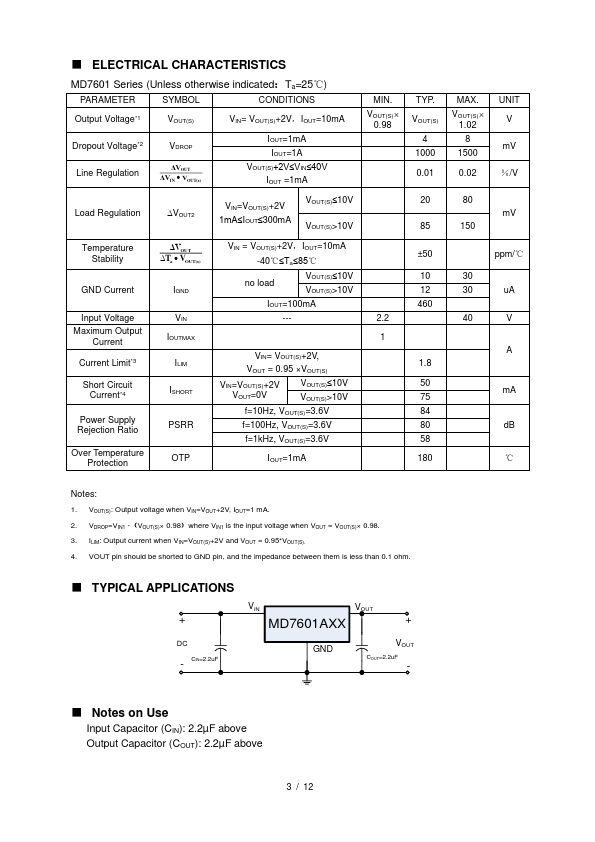

Additional preview pages of the MD7601A33 datasheet.

Product details

Features

S.
Ultra-low Quiescent Current: 12uA.
Maximum Input Voltage: 40V.
Output Voltage Highly Accurate: ±2％.
Maximum Output Current: 1A.
Dropout Voltage: 10mV@IOUT=10mA.
Temperature Stability: ±50ppm/℃.
Protections Circuits: Current Limiter, Foldback, Thermal shutdown.
Output Capacitor: Low ESR Ceramic Capacitor Compatible.
