WRB1203YQD - ISOLATED & REGULATED SINGLE OUTPUT DC-DC CONVERTER

The WRB1203YQD by MICRODC is a ISOLATED & REGULATED SINGLE OUTPUT DC-DC CONVERTER. Below is the official datasheet preview.

📥 Download Datasheet

WRB1203YQD ISOLATED & REGULATED SINGLE OUTPUT DC-DC CONVERTER by MICRODC - Datasheet Preview — Official preview page of the WRB1203YQD ISOLATED & REGULATED SINGLE OUTPUT DC-DC CONVERTER datasheet (MICRODC).

Datasheet Details

Part number	WRB1203YQD
Manufacturer	MICRODC
File Size	535.69 KB
Description	ISOLATED & REGULATED SINGLE OUTPUT DC-DC CONVERTER
Datasheet	WRB1203YQD-MICRODC.pdf

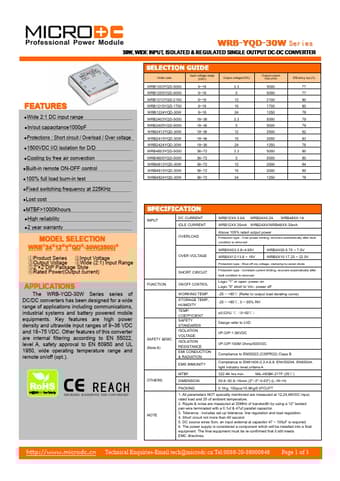

Additional preview pages of the WRB1203YQD datasheet.

WRB1203YQD Product details

Features

Wide 2:1 DC input range.
In/out capacitance1000pF.
Protections : Short circuit / Overload / Over voltage.
1500VDC I/O isolation for D/D.
Cooling by free air convection.
Built-in remote ON-OFF control.
100% full load burn-in test.
Fixed switching frequency at 225KHz.
Lost cost.
MTBF>1000Khours.
High reliability.
2 year warranty MODEL.
