RV-3149-C3 Real-Time Clock Module

RV-3149-C3 Description

APPLICATIONS IoT Metering Industrial Portables Automotive Health Care BLOCK DIAGRAM RV-3149-C3 Real-Time Clock Module with SPI-Bus DIMENSIONS Packag.
The RV-3149-C3 is a SMT Real-Time Clock Module that incorporates an integrated CMOS circuit together with an XTAL.

RV-3149-C3 Features

* Low power consumption: 800 nA @ 3 V. Wide operating voltage range: 1.3 V to 5.5 V. Time accuracy, temp. compensated: Option A: -40 to +85°C, ±6 ppm, Option B: -40 to +85°C, ±25 ppm. Extended operating temperature range: -40 to +125°C. Automatic Backup Switchover and Trickle Charger funct

RV-3149-C3 Applications

* IoT Metering Industrial Portables Automotive Health Care BLOCK DIAGRAM RV-3149-C3 Real-Time Clock Module with SPI-Bus DIMENSIONS Package: 3,7 0,8 0,3 Recommended Solder Pad: 0,8 0,8 0,8 0,8 0,5 1 2 3 4 5 0,8 1,4 0,8 3,0 0,55 2,5 0,9 max 10 9 8 7 6 0,2 3,7 Metal lid is connected to

📥 Download Datasheet

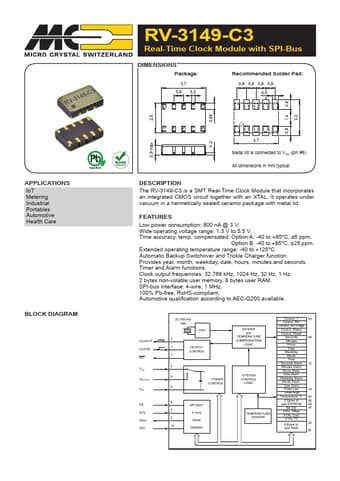

Preview of RV-3149-C3 PDF
datasheet Preview Page 2
