SR510, SR502 SCHOTTKY BARRIER RECTIFIER

SR510 Description

SR502 THRU SR510 SCHOTTKY BARRIER RECTIFIER VOLTAGE RANGE CURRENT 20 to 100 Volts 5.0 Ampere .

SR510 Features

* Fast switching speed
* Low forward voltage
* Low power high efficiency
* High surge capability
* High temperature soldering guaranteed 250℃/10 seconds,0.373”(9.5mm)lead length MECHANICAL DATA
* Case: Transfer molded plastic
* Epoxy: UL94V-0 r

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SR510, SR502. Please refer to the document for exact specifications by model.

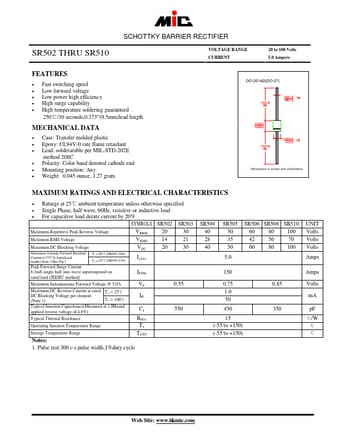

datasheet Preview Page 2

Datasheet Details

Part number
SR510, SR502
Manufacturer
MIC
File Size
73.06 KB
Datasheet
SR502-MIC.pdf
Description
SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SR510, SR502.
Please refer to the document for exact specifications by model.
