SMAJ7.0CA - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS

Download the SMAJ7.0CA datasheet PDF (SMAJ5.0 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for surface mount transient voltage suppressors.

Features

  • Working peak reverse voltage range.
  • 5.0V to 440V.
  • Peak power dissipation 400W @10 x 1000 us Pulse.
  • Low profile package.
  • Excellent clamping capability.
  • Glass passivated junction.
  • Fast response time: typically less than 1 ns for Uni-direction. Less than 5 ns for Bi-direction, from 0 Volts to BV min.
  • Typical IR less than 1uA above 10V.
  • Plastic material has UL flammability classification 94V-O.
  • RoHS compliant in lead-free versions.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SMAJ5.0-MIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SMAJ7.0CA
Manufacturer MIC
File Size 378.24 KB
Description SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS
Datasheet download datasheet SMAJ7.0CA Datasheet

📁 Similar Datasheet

  • SMAJ7.0CA - Transient Voltage Suppression Diodes (Littelfuse)
  • SMAJ7.0CA - SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS (LITE-ON)
  • SMAJ7.0CA - Surface Mount Transient Voltage Suppressors (CYStech Electronics)
  • SMAJ7.0CA - 400W Surface Mount Transient Voltage Suppressors (Weitron)
  • SMAJ7.0CA - 400W Surface Mount Transient Voltage Suppressor (TAITRON)
  • SMAJ7.0CA - Transient Voltage Suppressor (MCC)
  • SMAJ7.0CA - Transient Voltage Suppressor Diode (Bourns)
  • SMAJ7.0CA - 400W Transient Voltage Suppressor (WeEn)
  • SMAJ7.0CA - 400W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (Diodes)
  • SMAJ7.0CA - Surface Mount TVS (SeCoS)
Other Datasheets by MIC
  • SMAJ7.0C - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS
  • SMAJ7.0 - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS
  • SMAJ7.0A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS
  • SMAJ7.5 - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS
  • SMAJ7.5A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS
  • SMAJ7.5C - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS
  • SMAJ7.5CA - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS
  • SMAJ70 - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS

Full PDF Text Transcription

Click to expand full text

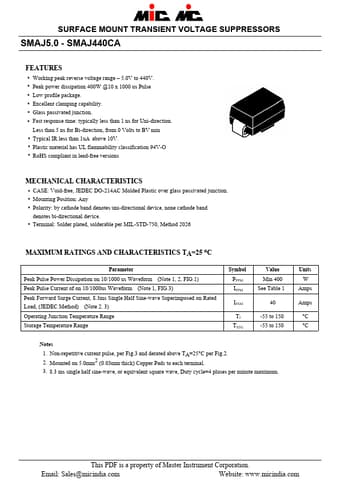

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS SMAJ5.0 - SMAJ440CA FEATURES ▪ Working peak reverse voltage range – 5.0V to 440V. ▪ Peak power dissipation 400W @10 x 1000 us Pulse ▪ Low profile package. ▪ Excellent clamping capability. ▪ Glass passivated junction. ▪ Fast response time: typically less than 1 ns for Uni-direction. Less than 5 ns for Bi-direction, from 0 Volts to BV min ▪ Typical IR less than 1uA above 10V. ▪ Plastic material has UL flammability classification 94V-O ▪ RoHS compliant in lead-free versions MECHANICAL CHARACTERISTICS ▪ CASE: Void-free, JEDEC DO-214AC Molded Plastic over glass passivated junction. ▪ Mounting Position: Any ▪ Polarity: by cathode band denotes uni-directional device, none cathode band denotes bi-directional device.
