RS1003, RS1001 - SINGLE-PHASE BRIDGE RECTIFIER

Datasheet Details

Part number	RS1003, RS1001
Manufacturer	MIC
File Size	109.79 KB
Description	SINGLE-PHASE BRIDGE RECTIFIER
Datasheet	RS1001-MIC.pdf
Note	This datasheet PDF includes multiple part numbers: RS1003, RS1001. Please refer to the document for exact specifications by model.

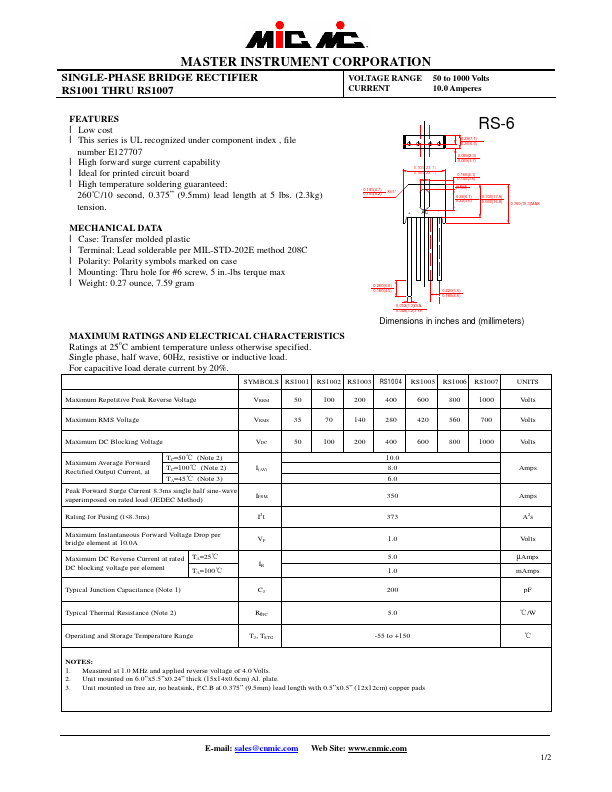

l Low cost l This series is UL recognized under component index , file number E127707 l High forward surge current capability l Ideal for printed circuit board l High temperature soldering guaranteed: 260℃/10 second, 0.375” (9.5mm) lead length at 5 lbs. (2.3kg) tension. 0.185(4.7) 0.165(4.2) X45° 0.935(23.7) 0.895(22.7) + AC - RS-6 0.28(7.1) 0.26(6.6) 0.089(2.3) 0.069(1.7) 0.160(4.1) 0.140(3.6) 0.19(4.8) 0.17(4.3) 0.24(6.1) 0.22(5.6) 0.700(17.8) 0.660(16.8) 0.760(19.3)MAX.
