MB1510, MB1505 - SINGLE-PHASE BRIDGE RECTIFIER

MIC

The MB1510 by MIC is a SINGLE-PHASE BRIDGE RECTIFIER. Below is the official datasheet preview.

📥 Download Datasheet

MB1510 SINGLE-PHASE BRIDGE RECTIFIER by MIC - Datasheet Preview — Official preview page of the MB1510 SINGLE-PHASE BRIDGE RECTIFIER datasheet (MIC).

Datasheet Details

Part number	MB1510, MB1505
Manufacturer	MIC
File Size	112.07 KB
Description	SINGLE-PHASE BRIDGE RECTIFIER
Datasheet	MB1505-MIC.pdf
Note	This datasheet PDF includes multiple part numbers: MB1510, MB1505. Please refer to the document for exact specifications by model.

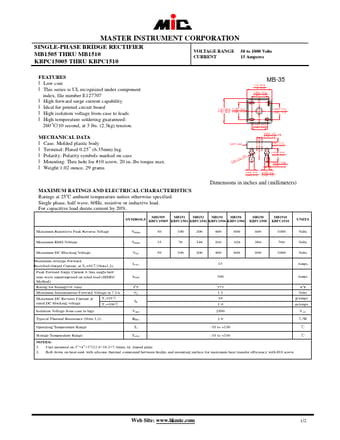

Additional preview pages of the MB1510 datasheet.

MB1510 Product details

Features

l Low cost l This series is UL recognized under component index, file number E127707 l High forward surge current capability l Ideal for printed circuit board l High isolation voltage from case to leads l High temperature soldering guaranteed: 260 oC/10 second, at 5 lbs. (2.3kg) tension.
