GBPC108 - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

Download the GBPC108 datasheet PDF. This datasheet also covers the GBPC1005 variant, as both devices belong to the same glass passivated single-phase bridge rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • Plastic package has underwriters laboratory.
  • Flammability classification 94V-0.
  • Glass passivated ship junction.
  • High case dielectric with standing voltage of 1500VRMS.
  • Tyoical IR less than 0.1μA.
  • High surge current capability.
  • Ideal for printed circuit boards.
  • High temperature soldering guaranteed 260℃/10 seconds, 0.375” (9.5mm) lead length at 5 lbs (2.3kg) tension.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GBPC1005-MIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number GBPC108
Manufacturer MIC
File Size 82.80 KB
Description GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
Datasheet download datasheet GBPC108 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GBPC108 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER General Semiconductor
GBPC108 Single Phase Glass Passivated Bridge Rectifier MEI SEMI
GBPC108 Glass Passivated Single-Phase Bridge Rectifier Vishay
GBPC108 3.0A Glass Passivated Bridge Rectifier TAITRON Components
GBPC1000 10A GLASS PASSIVATED BRIDGE RECTIFIER Sensitron Semiconductor

Other Datasheets by MIC

Part Number Description
GBPC1005 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
GBPC101 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
GBPC102 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
GBPC104 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
GBPC106 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

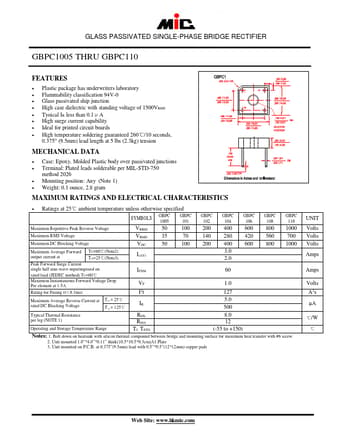

GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER GBPC1005 THRU GBPC110 FEATURES • Plastic package has underwriters laboratory • Flammability classification 94V-0 • Glass passivated ship junction • High case dielectric with standing voltage of 1500VRMS • Tyoical IR less than 0.1μA • High surge current capability • Ideal for printed circuit boards • High temperature soldering guaranteed 260℃/10 seconds, 0.375” (9.5mm) lead length at 5 lbs (2.3kg) tension MECHANICAL DATA • Case: Epoxy, Molded Plastic body over passivated junctions • Terminal: Plated leads solderable per MIL-STD-750 method 2026 • Mounting position: Any (Note 1) • Weight: 0.1 ounce, 2.
