DB103S - (DB101S - DB107S) SURFACE MOUNT BRIDGE

Download the DB103S datasheet PDF (DB101S included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for (db101s - db107s) surface mount bridge.

MIC

📥 Download Datasheet

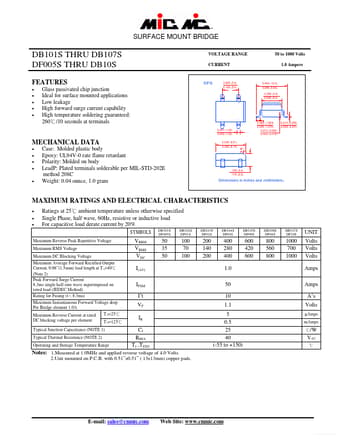

DB103S (db101s - db107s) surface mount bridge by MIC - Datasheet Preview — Note: The manufacturer provides a single datasheet file (DB101S_MIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	DB103S
Manufacturer	MIC
File Size	74.40 KB
Description	(DB101S - DB107S) SURFACE MOUNT BRIDGE
Datasheet	DB103S Datasheet

📁 Similar Datasheet

DB103S - SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIERS (Sangdest)
DB103S - GLASS PASSIVATED SILICON BRIDGE RECTIFIERS (SMC Diode)
DB103S - SMD Bridge Rectifier (Formosa MS)
DB103S - SINGLE-PHASE GLASS PASSIVATED SILICON SURFACE MOUNT BRIDGE RECTIFIER (Kingtronics)
DB103S - SILICON BRIDGE RECTIFIER (Rectron)
DB103S - SINGLE-PHASE SILICON BRIDGE RECITFIER (Dc Components)
DB103S - Miniature Glass Passivated Single-Phase Bridge Rectifiers (GOODARK)
DB103S - Glass Passivated Bridge Rectifiers (Luguang Electronic)
DB103S - (DB101S - DB107S) SILICON SURFACE MOUNT BRIDGE RECTIFIER (WILLAS)
DB103S - 1.0 Ampere Surface Mount Glass Passivated Bridge Rectifier (Thinki Semiconductor)

Other Datasheets by MIC

DB103 - SINGLE-PHASE BRIDGE RECTIFIER
DB101 - SINGLE-PHASE BRIDGE RECTIFIER
DB101S - SURFACE MOUNT BRIDGE
DB102 - SINGLE-PHASE BRIDGE RECTIFIER
DB102S - (DB101S - DB107S) SURFACE MOUNT BRIDGE
DB104 - SINGLE-PHASE BRIDGE RECTIFIER
DB104S - (DB101S - DB107S) SURFACE MOUNT BRIDGE
DB105 - SINGLE-PHASE BRIDGE RECTIFIER

Full PDF Text Transcription

Click to expand full text

SURFACE MOUNT BRIDGE DB101S THRU DB107S DF005S THRU DB10S FEATURES • • • • • VOLTAGE RANGE CURRENT 50 to 1000 Volts 1.0 Ampere DFS Glass passivated chip junction Ideal for surface mounted applications Low leakage High forward surge current capability High temperature soldering guaranteed: 260℃/10 seconds at terminals 0.205 (5.2) 0.195 (5.0) 0.404 (10.3) 0.386 (9.80) 0.255 (6.5) 0.245 (6.2) - + 0.047 (1.20) 0.040 (1.02) - 0.060 (1.524) 0.040 (1.016) 0.013 (0.330) 0.003 (0.076) 0.013 (0.330) 0.009 (0.241) MECHANICAL DATA • • • • • Case: Molded plastic body Epoxy: UL94V-0 rate flame retardant Polarity: Molded on body LeadP: Plated terminals solderable per MIL-STD-202E method 208C Weight: 0.04 ounce, 1.0 gram 0.335 (8.51) 0.320 (8.13) 45 O .135 (3.4) .115 (2.

Published: Dec 27, 2013 |
