MXC4006XC - Three-Axis Accelerometer

Product Overview

MEMSIC

Datasheet Details

Part number	MXC4006XC
Manufacturer	MEMSIC
File Size	959.14 KB
Description	Three-Axis Accelerometer
Datasheet	MXC4006XC Datasheet
Note	This datasheet PDF includes multiple part numbers: MXC4006XC, MXC4000XC. Please refer to the document for exact specifications by model.

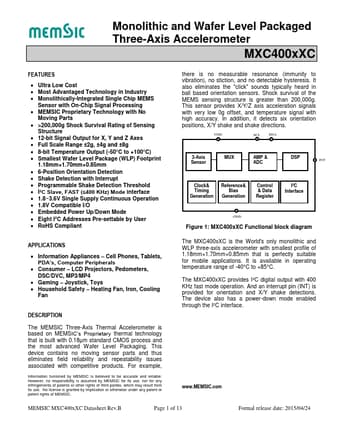

Additional preview pages of the MXC4006XC datasheet.

Product details

Description

The MEMSIC Three-Axis Thermal Accelerometer is based on MEMSIC’s Proprietary thermal technology that is built with 0.18µm standard CMOS process and the most advanced Wafer Level Packaging.

Features

Ultra Low Cost.
Most Advantaged Technology in Industry.
Monolithically-Integrated Single Chip MEMS Sensor with On-Chip Signal Processing.
MEMSIC Proprietary Technology with No Moving Parts.
>200,000g Shock Survival Rating of Sensing Structure.
12-bit Signal Output for X, Y and Z Axes.
Full Scale Range ±2g, ±4g and ±8g.
8-bit Temperature Output (-50°C to +100°C).
Smallest Wafer Level Package (WLP) Footprint 1.18mm×1.70mm×0.85mm.
6-Position Orient.
