US1BB - SURFACE MOUNT HIGH EFFICIENCY RECTIFIER

Download the US1BB datasheet PDF. This datasheet also covers the US1AB variant, as both devices belong to the same surface mount high efficiency rectifier family and are provided as variant models within a single manufacturer datasheet.

General Description

Max Recurrent Peak Reverse Voltage  Max RMS Voltage  Max

Key Features

  •  .
  • Plastic package has Underwriters Laboratory          Flammability Classification 94V‐0.
  • Built‐in strain relief, ideal for automated placement .
  • Fast switching speed for high efficiency .
  • Glass passivated chip junction .
  • High temperature soldering guaranteed:           260℃/10 seconds .
  • RoHS and REACH Compliance  Mechanical Data Case:  Polarity:  Terminal:  Mounting Position:  JEDEC DO‐214AA molded plastic over glass passivated chip  Co.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (US1AB-MEISEMI.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number US1BB
Manufacturer MEI SEMI
File Size 220.02 KB
Description SURFACE MOUNT HIGH EFFICIENCY RECTIFIER
Datasheet download datasheet US1BB Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
US1BB SURFACE MOUNT ULTRA FAST RECTIFIER GOOD ELECTRONIC
US1BB 1A Surface Mount Ultra Fast Rectifiers CITC
US1B SURFACE MOUNT ULTRA FAST RECTIFIER LITE-ON
US1B SURFACE MOUNT ULTRA FAST RECOVERY RECTIFIER MIC
US1B SMD HIGH EFFICIENT RECTIFIER RFE

Other Datasheets by MEI SEMI

Part Number Description
US1AB SURFACE MOUNT HIGH EFFICIENCY RECTIFIER
US1DB SURFACE MOUNT HIGH EFFICIENCY RECTIFIER
US1GB SURFACE MOUNT HIGH EFFICIENCY RECTIFIER
US1JB SURFACE MOUNT HIGH EFFICIENCY RECTIFIER
US1KB SURFACE MOUNT HIGH EFFICIENCY RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

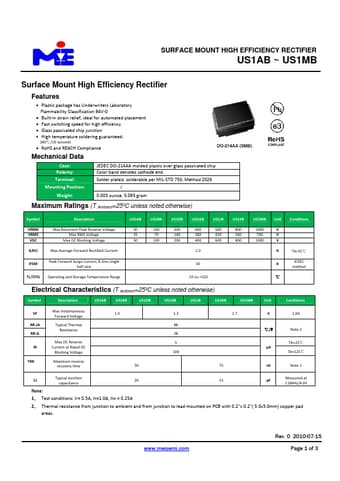

SURFACE MOUNT HIGH EFFICIENCY RECTIFIER US1AB ~ US1MB Surface Mount High Efficiency Rectifier Features   • Plastic package has Underwriters Laboratory          Flammability Classification 94V‐0 • Built‐in strain relief, ideal for automated placement  • Fast switching speed for high efficiency  • Glass passivated chip junction  • High temperature soldering guaranteed:           260℃/10 seconds  • RoHS and REACH Compliance  Mechanical Data Case:  Polarity:  Terminal:  Mounting Position:  JEDEC DO‐214AA molded plastic over glass passivated chip  Color band denotes cathode end.  Solder plated, solderable per MIL‐STD 750, Method 2026                       /  Weight:  0.003 ounce, 0.
