RS3JB - SURFACE MOUNT FAST RECOVERY RECTIFIER

Download the RS3JB datasheet PDF. This datasheet also covers the RS3AB variant, as both devices belong to the same surface mount fast recovery rectifier family and are provided as variant models within a single manufacturer datasheet.

Description

RS3AB RS3BB RS3DB RS3GB RS3JB RS3KB RS3MB Unit VRRM VRMS VDC I(AV) IFSM TJ,TSTG Rθ-JA Rθ-JL Max Recurrent Peak Reverse Voltage Max RMS Voltage Max DC Blocking Voltage Max Average Forward Rectified Current Peak Forward Surge Current Operating and Storage Temperature Range Typical Thermal Resistanc

Features

  • Glass passivated chip junction.
  • Built in strain relief.
  • Fast recovery time for high efficiency.
  • High temperature soldering guaranteed: 250℃/10 seconds.
  • RoHS and REACH Compliance Mechanical Data Case: Polarity: Epoxy: Lead: Weight: Transfer molded plastic Color band denotes cathode end UL 94V-0 rate flame retardant Solder plated, solderable per MIL-STD-750 method 2026 0.09 gram.
  • DO-214AA (SMB) Maximum Ratings (T Ambient=25ºC unless noted otherwise) Symbol.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (RS3AB-MEISEMI.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number RS3JB
Manufacturer MEI SEMI
File Size 579.50 KB
Description SURFACE MOUNT FAST RECOVERY RECTIFIER
Datasheet download datasheet RS3JB Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
RS3JB Surface Mount Rectifiers LGE
RS3JB Surface Mount Rectifiers GME
RS3JB SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES Sunmate
RS3JB SURFACE MOUNT FAST RECOVERY GLASS PASSIVATED RECTIFIERS HY
RS3JB Surface Mount Fast Recovery Rectifiers Jingdao Microelectronics

Other Datasheets by MEI SEMI

Part Number Description
RS3AB SURFACE MOUNT FAST RECOVERY RECTIFIER
RS3BB SURFACE MOUNT FAST RECOVERY RECTIFIER
RS3DB SURFACE MOUNT FAST RECOVERY RECTIFIER
RS3GB SURFACE MOUNT FAST RECOVERY RECTIFIER
RS3KB SURFACE MOUNT FAST RECOVERY RECTIFIER

Full PDF Text Transcription

Click to expand full text

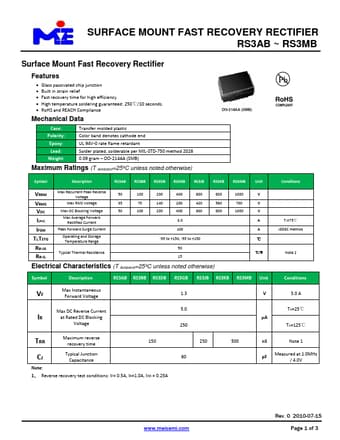

SURFACE MOUNT FAST RECOVERY RECTIFIER RS3AB ~ RS3MB Surface Mount Fast Recovery Rectifier Features  Glass passivated chip junction  Built in strain relief  Fast recovery time for high efficiency  High temperature soldering guaranteed: 250℃/10 seconds.  RoHS and REACH Compliance Mechanical Data Case: Polarity: Epoxy: Lead: Weight: Transfer molded plastic Color band denotes cathode end UL 94V-0 rate flame retardant Solder plated, solderable per MIL-STD-750 method 2026 0.
