GBPC2512, GBPC25005 SINGLE PHASE BRIDGE RECTIEFIER

GBPC2512 Description

SINGLE PHASE BRIDGE RECTIEFIER GBPC25005 ~ GBPC2512 Single Phase Bridge Rectifier .

GBPC2512 Features

* Plastic package has UL flammability classification 94V‐0
* Integrally molded heatsink provides very low thermal  Resistance for maximum heat dissipation
* High forward surge capability
* Glass passivated chip junction
* High isolation voltage from case

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GBPC2512, GBPC25005. Please refer to the document for exact specifications by model.

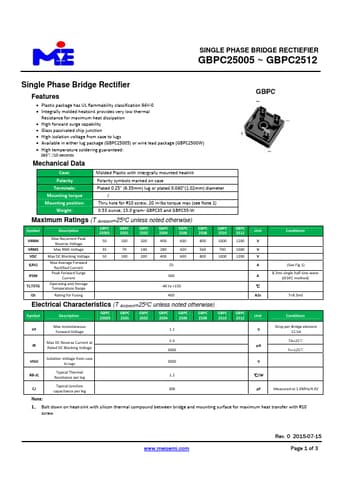

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GBPC2512, GBPC25005
Manufacturer
MEI SEMI
File Size
277.69 KB
Datasheet
GBPC25005-MEISEMI.pdf
Description
SINGLE PHASE BRIDGE RECTIEFIER
Note
This datasheet PDF includes multiple part numbers: GBPC2512, GBPC25005.
Please refer to the document for exact specifications by model.
