Download the GBPC102 datasheet PDF.
This datasheet also covers the GBPC1005 variant, as both devices belong to the same single phase glass passivated bridge rectifier family and are provided as variant models within a single manufacturer datasheet.
Description
Max Recurrent Peak Reverse Voltage
Max RMS Voltage
GBPC 1005
50
35
GBPC 101
100
70
GBPC 102
200
140
GBPC 104
400
280
GBPC 106
600
420
GBPC 108
800
560
VDC Max DC Blocking Voltage 50 10
Features
- Glass passivated chip junction.
- Plastic package has underwriters laboratory.
- Flammability classification 90V-0.
- High cas dielectric with standing voltage of 1500Vrms.
- Typical IR less than 0.1 uA.
- Ideal for printed circuit boards.
- High surge current capability.
- High temperature soldering guaranteed:
260℃/10 seconds, 0.375”(9.5mm) lead length
Mechanical Data
Case: Polarity Terminals: Mounting torque Mounting position: Weight:
Molded Plastic body over pas.

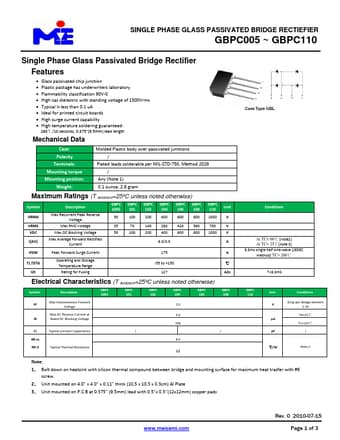

GBPC102 Datasheet
