LDD-1200HW, LDD-300H - DC-DC Constant Current Step-Down LED driver

Name: LDD-1200HW
SKU: LDD-1200HW-1501812

MEAN WELL

The LDD-1200HW by MEAN WELL is a DC-DC Constant Current Step-Down LED driver. Below is the official datasheet preview.

Datasheet Details

Part number	LDD-1200HW, LDD-300H
Manufacturer	MEAN WELL
File Size	1.37 MB
Description	DC-DC Constant Current Step-Down LED driver
Datasheet	LDD-300H-MEANWELL.pdf
Note	This datasheet PDF includes multiple part numbers: LDD-1200HW, LDD-300H. Please refer to the document for exact specifications by model.

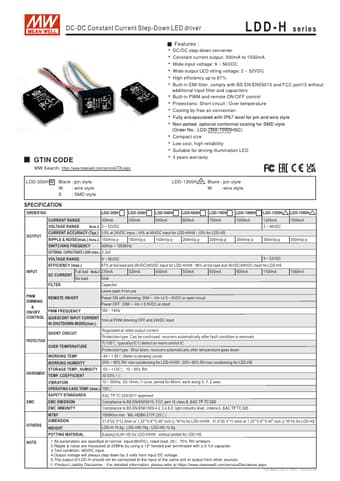

Additional preview pages of the LDD-1200HW datasheet.

s : DC/DC step-down converter Constant current output: 300mA to 1500mA Wide input voltage: 9 ~ 56VDC Wide output LED string voltage: 2 ~ 52VDC High efficiency up to 97% Built-in EMI filter, comply with BS EN/EN55015 and FCC part15 without additional input filter and capacitors Built-in PWM and remote ON/OFF control Protections: Short circuit / Over temperature Cooling by free air convection Fully encapsulated with IP67 level for pin and wire style Non-potted, optional conformal coating for SMD s.
