ICTE5.0 - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

📥 Download Datasheet

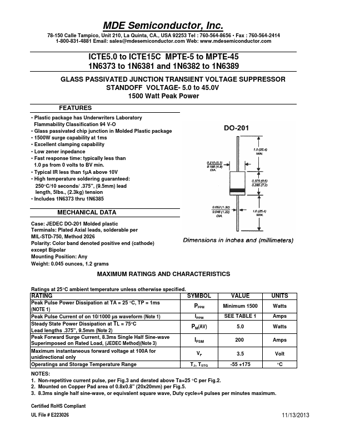

ICTE5.0 Datasheet Preview — Preview of ICTE5.0 PDF

datasheet Preview Page 2

Datasheet Details

Part number	ICTE5.0
Manufacturer	MDE
File Size	40.99 KB
Description	GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	ICTE5.0-MDE.pdf

ICTE5.0 Product details

Features

Plastic package has Underwriters Laboratory Flammability Classification 94 V-O.
Glass passivated chip junction in Molded Plastic package.
1500W surge capability at 1ms.
Excellent clamping capability.
Low zener inpedance.
Fast response time: typically less than 1.0 ps from 0 volts to BV min.
Typical IR less than 1µA above 10V.
High temperature soldering guaranteed: 250°C/10 seconds/ .375", (9.5mm) lead length, 5lbs. , (2.3kg.
