20KP112A, 20KP20A - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

The 20KP112A by MDE Semiconductor is a GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR. Below is the official datasheet preview.

Datasheet Details

Part number	20KP112A, 20KP20A
Manufacturer	MDE Semiconductor
File Size	62.33 KB
Description	GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	20KP20A-MDESemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: 20KP112A, 20KP20A. Please refer to the document for exact specifications by model.

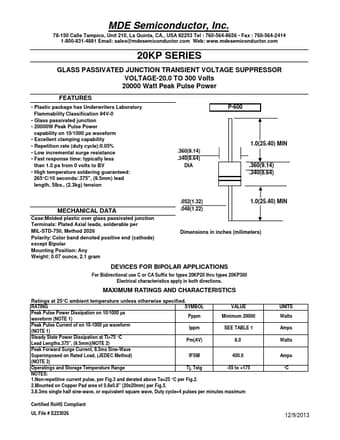

Additional preview pages of the 20KP112A datasheet.

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
Glass passivated junction.
20000W Peak Pulse Power capability on 10/1000 µs waveform.
Excellent clamping capability.
Repetition rate (duty cycle):0.05%.
Low incremental surge resistance.
Fast response time: typically less than 1.0 ps from 0 volts to BV.
High temperature soldering guaranteed: 265°C/10 seconds/.375", (9.5mm) lead length, 5lbs. , (2.
