S07K, S07A - SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIER

S07K Description

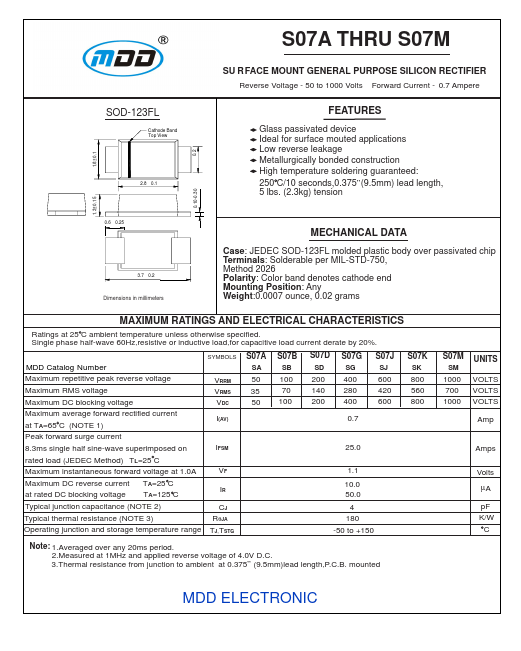

SOD-123FL Cathode Band Top View 2.80.1 0.2 S07A THRU S07M SU R FACE MOUNT GENERAL PURPOSE SILICON RECTIFIER Reverse Voltage - 50 to 1000 Volts For.

S07K Applications

* Low reverse leakage Metallurgically bonded construction High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension 1.8± 0.1 0.10-0.30 1.3± 0.15 0.60.25 3.70.2 Dimensions in millimeters MECHANICAL DATA Case: JEDEC SOD-123FL molded plastic body ove

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: S07K, S07A. Please refer to the document for exact specifications by model.

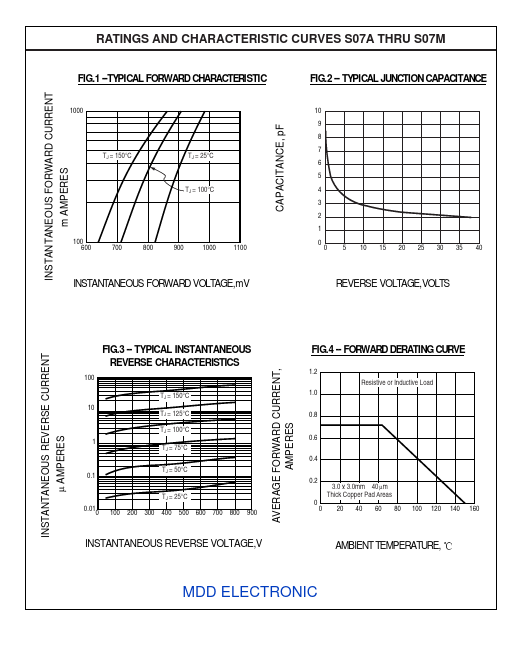

datasheet Preview Page 2

Datasheet Details

Part number
S07K, S07A
Manufacturer
MDD
File Size
110.67 KB
Datasheet
S07A-MDD.pdf
Description
SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIER
Note
This datasheet PDF includes multiple part numbers: S07K, S07A.
Please refer to the document for exact specifications by model.
