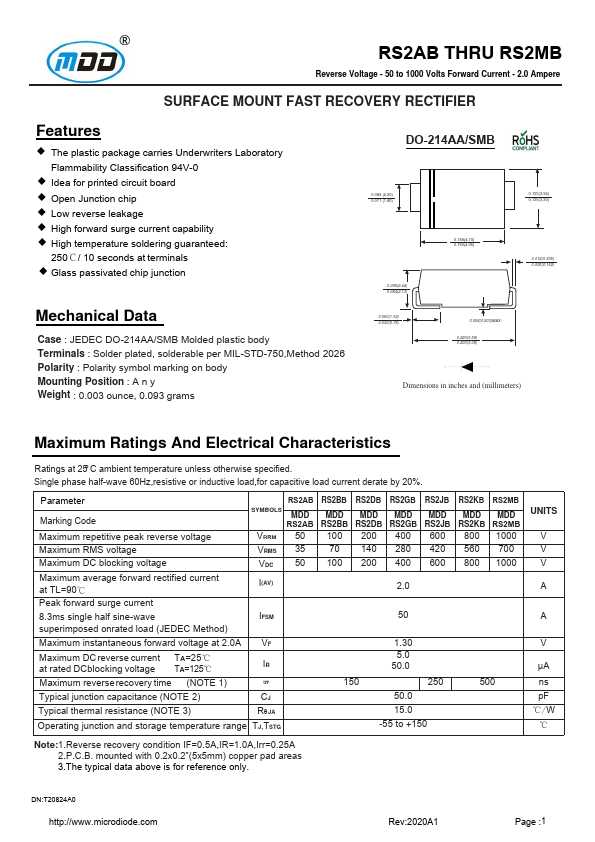

RS2MB, RS2AB - SURFACE MOUNT FAST RECOVERY RECTIFIER

Datasheet Details

Part number	RS2MB, RS2AB
Manufacturer	MDD
File Size	283.89 KB
Description	SURFACE MOUNT FAST RECOVERY RECTIFIER
Datasheet	RS2AB-MDD.pdf
Note	This datasheet PDF includes multiple part numbers: RS2MB, RS2AB. Please refer to the document for exact specifications by model.

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0.
Idea for printed circuit board.
Open Junction chip.
Low reverse leakage.
High forward surge current capability.
High temperature soldering guaranteed: 250.
/ 10 seconds at terminals.
Glass passivated chip junction Mechanical Data Case : JEDEC DO-214AA/SMB Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marki.
