DSR0.3K, DSR0.3A - Surface Mount Standard Rectifiers

DSR0.3K Description

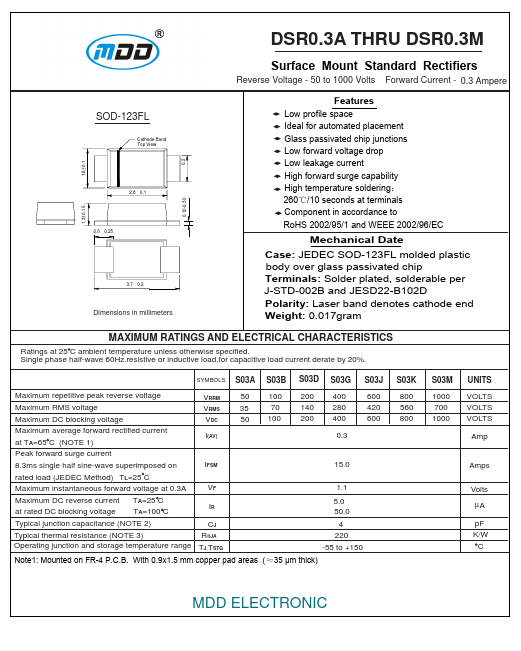

DSR0.3A THRU DSR0.3M 1.8± 0.1 SOD-123FL Cathode Band Top View 2.80.1 0.60.25 3.70.2 Dimensions in millimeters 0.10-0.30 0.2 Surface Mount Sta.

DSR0.3K Features

* Low profile space Ideal for automated placement Glass passivated chip junctions Low forward voltage drop Low leakage current High forward surge capability High temperature soldering： 260℃/10 seconds at terminals Component in accordance to RoHS 2002/95/1 and WEEE 2002/96/EC Mechanical Date Case: JEDE

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DSR0.3K, DSR0.3A. Please refer to the document for exact specifications by model.

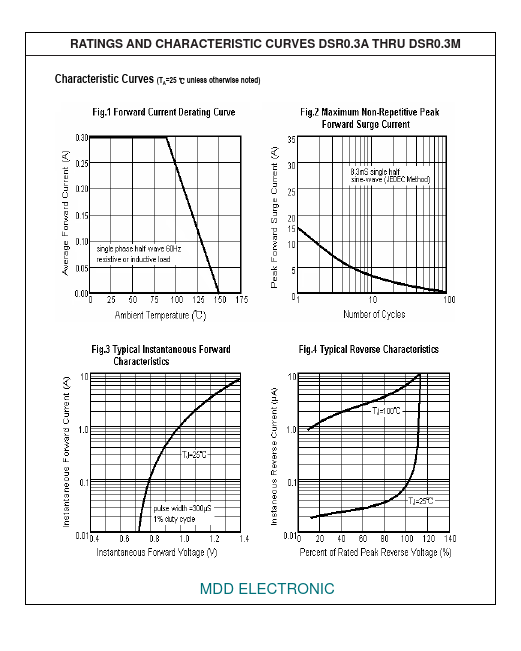

datasheet Preview Page 2

Datasheet Details

Part number
DSR0.3K, DSR0.3A
Manufacturer
MDD
File Size
385.55 KB
Datasheet
DSR0.3A-MDD.pdf
Description
Surface Mount Standard Rectifiers
Note
This datasheet PDF includes multiple part numbers: DSR0.3K, DSR0.3A.
Please refer to the document for exact specifications by model.
