1N4948G, 1N4942G - FAST RECOVERY GLASS PASSIVATED RECTIFIERS

1N4948G Description

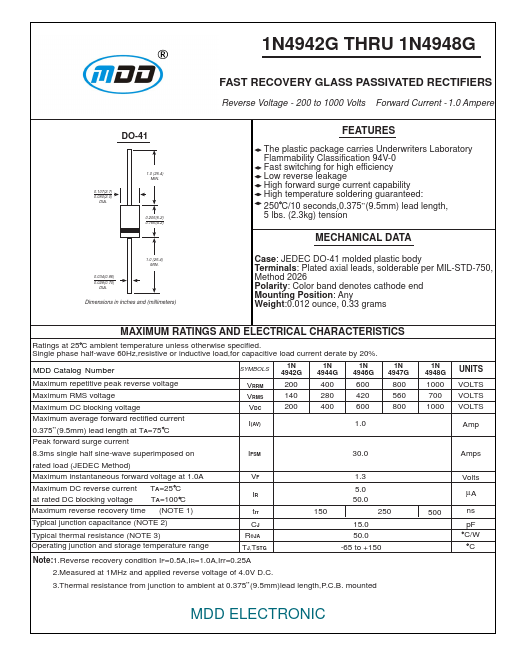

1N4942G THRU 1N4948G FAST RECOVERY GLASS PASSIVATED RECTIFIERS Reverse Voltage - 200 to 1000 Volts Forward Current - 1.0 Ampere DO-41 0.107(2.7) 0..

1N4948G Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Fast switching for high efficiency Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension MECHANICAL DATA

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N4948G, 1N4942G. Please refer to the document for exact specifications by model.

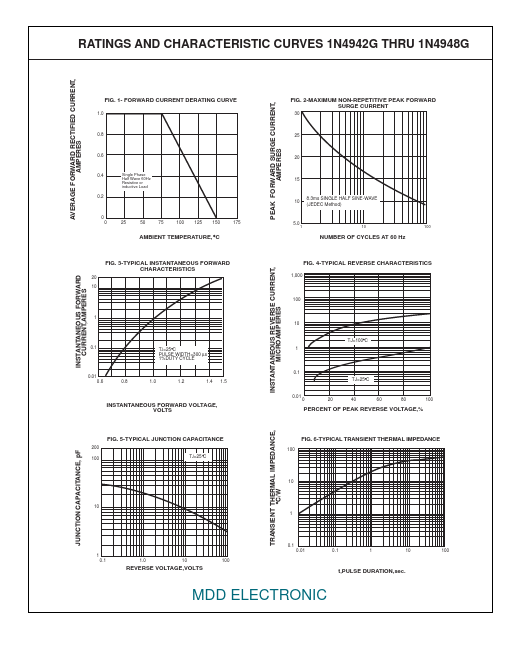

datasheet Preview Page 2

Datasheet Details

Part number
1N4948G, 1N4942G
Manufacturer
MDD
File Size
69.28 KB
Datasheet
1N4942G-MDD.pdf
Description
FAST RECOVERY GLASS PASSIVATED RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: 1N4948G, 1N4942G.
Please refer to the document for exact specifications by model.
