SMLJ15CAHE3, SMLJ10AHE3 - TVS

MCC

📥 Download Datasheet

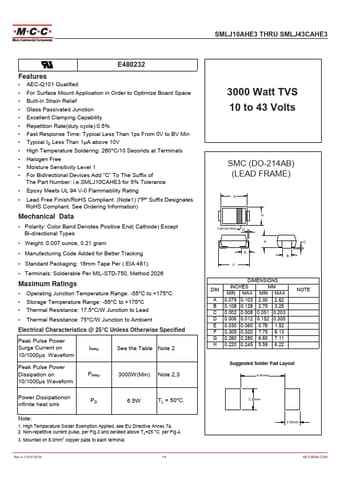

SMLJ15CAHE3 Datasheet Preview — This datasheet PDF includes multiple part numbers: SMLJ15CAHE3, SMLJ10AHE3. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SMLJ15CAHE3, SMLJ10AHE3
Manufacturer: MCC
File Size: 587.80 KB
Datasheet: SMLJ10AHE3-MCC.pdf
Description: TVS
Note: This datasheet PDF includes multiple part numbers: SMLJ15CAHE3, SMLJ10AHE3.
Please refer to the document for exact specifications by model.

SMLJ15CAHE3 Product details

Features

AEC-Q101 Qualified.
For Surface Mount Application in Order to Optimize Board Space.
Built-in Strain Relief.
Glass Passivated Junction.
Excellent Clamping Capability.
Repetition Rate(duty cycle):0.5%.
Fast Response Time: Typical Less Than 1ps From 0V to BV Min.
Typical ID Less Than 1μA above 10V.
High Temperature Soldering: 260°C/10 Seconds at Terminals.
Halogen Free.
Moisture Sensitivity Level 1.
