S10AL - Surface Mount Glass Passivated Rectifier

MCC

📥 Download Datasheet

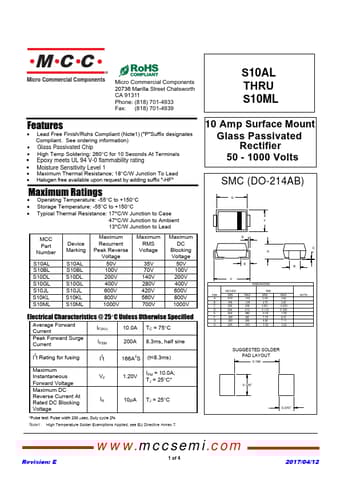

S10AL Datasheet Preview — Preview of S10AL PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	S10AL
Manufacturer	MCC
File Size	212.59 KB
Description	Surface Mount Glass Passivated Rectifier
Datasheet	S10AL-MCC.pdf

S10AL Product details

Features

Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information) x Glass Passivated Chip x High Temp Soldering: 260qC for 10 Seconds At Terminals.
Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1 x Maximum Thermal Resistance; 18qC/W Junction To Lead.
Halogen free available upon request by adding suffix "-HF" Maximum Ratings x Operating Temperature: -55qC to +150qC x Storage Temperature: -55qC to +150qC.
