MURHB860CT - Super Fast Recovery Rectifier

Product Overview

MCC

Part number	MURHB860CT
Manufacturer	MCC
File Size	122.96 KB
Description	Super Fast Recovery Rectifier
Datasheet	MURHB860CT Datasheet
Note	This datasheet PDF includes multiple part numbers: MURHB860CT, MURHB805CT. Please refer to the document for exact specifications by model.

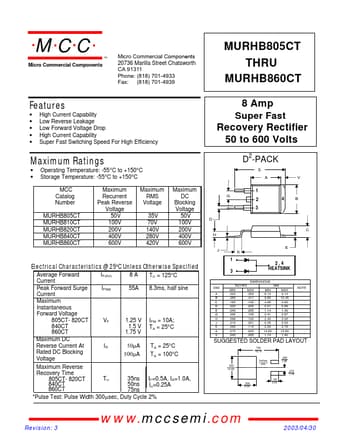

Additional preview pages of the MURHB860CT datasheet.

High Current Capability.
Low Reverse Leakage.
Low Forward Voltage Drop.
High Current Capability.
Super Fast Switching Speed For High Efficiency Maximum Ratings.
Operating Temperature: -55°C to +150°C.
Storage Temperature: -55°C to +150°C MCC Catalog Number MURHB805CT MURHB810CT MURHB820CT MURHB840CT MURHB860CT Maximum Recurrent Peak Reverse Voltage 50V 100V 200V 400V 600V Maximum RMS Voltage 35V 70V 140V 280V 420V Maximum DC Bl.
