MR754 - 6 Amp Rectifier

Product Overview

MCC

📥 Download Datasheet

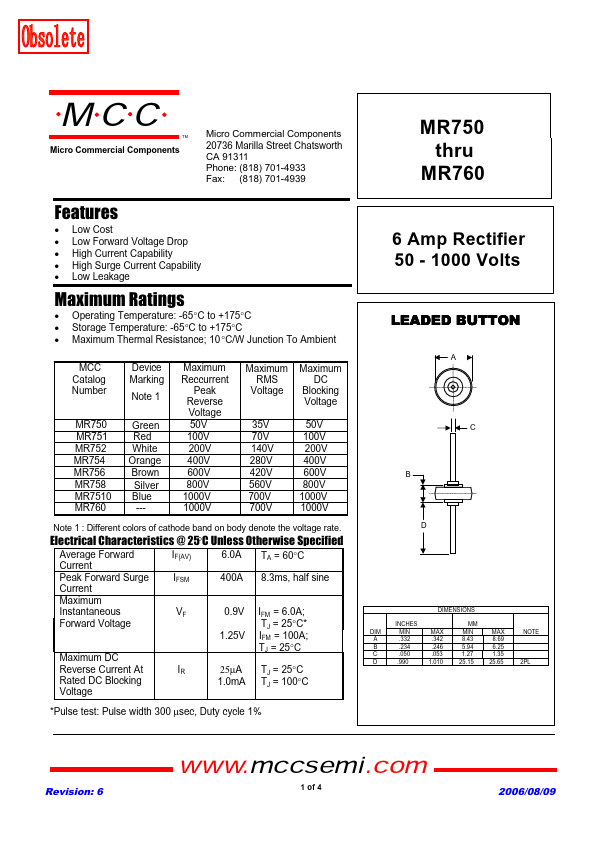

MR754 6 Amp Rectifier by MCC - Datasheet Preview — Datasheet preview – MR754

Datasheet Details

Part number	MR754
Manufacturer	MCC
File Size	101.09 KB
Description	6 Amp Rectifier
Datasheet	MR754 Datasheet
Note	This datasheet PDF includes multiple part numbers: MR754, MR750. Please refer to the document for exact specifications by model.

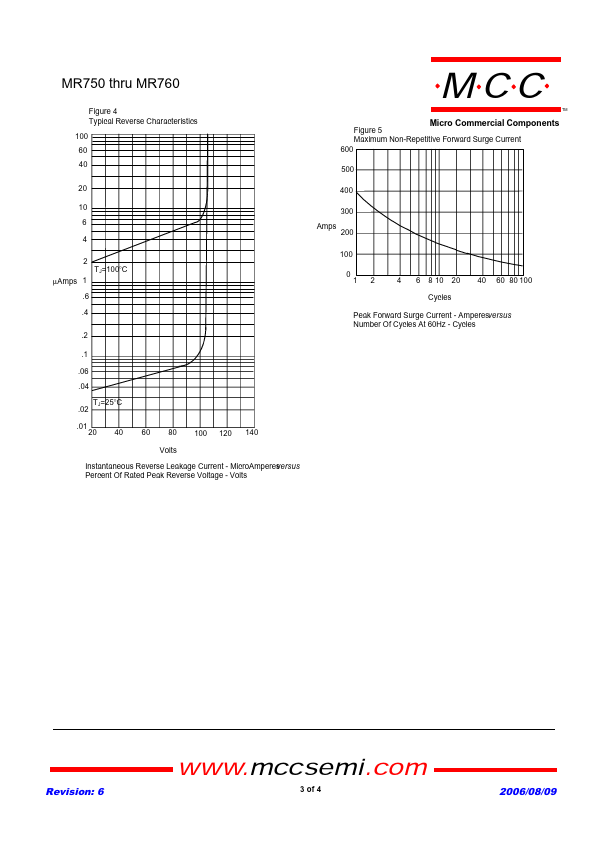

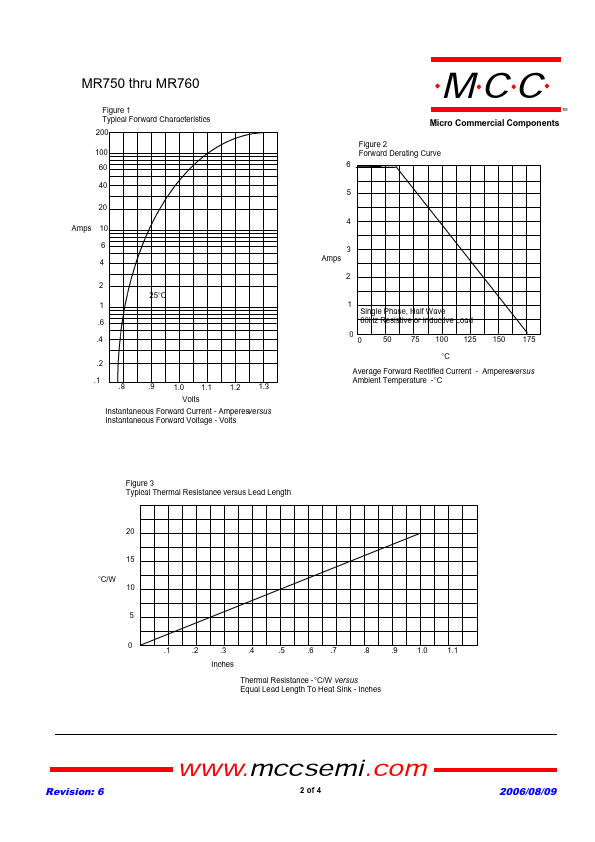

Additional preview pages of the MR754 datasheet.

Product details

Features

Low Cost.
Low Forward Voltage Drop.
High Current Capability.
High Surge Current Capability.
Low Leakage Maximum Ratings.
Operating Temperature: -65°C to +175°C.
Storage Temperature: -65°C to +175°C.
Maximum Thermal Resistance; 10 °C/W Junction To Ambient MCC Catalog Number MR750 MR751 MR752 MR754 MR756 MR758 MR7510 MR760 Device Marking Note 1 Green Red White Orange Brown Silver Blue --- Maximum Reccurrent Peak Reverse Vo.
