MCL4448 - 500mW 100V Silicon Epitaxial Diode

Product Overview

MCC

Part number	MCL4448
Manufacturer	MCC
File Size	416.61 KB
Description	500mW 100V Silicon Epitaxial Diode
Datasheet	MCL4448 Datasheet

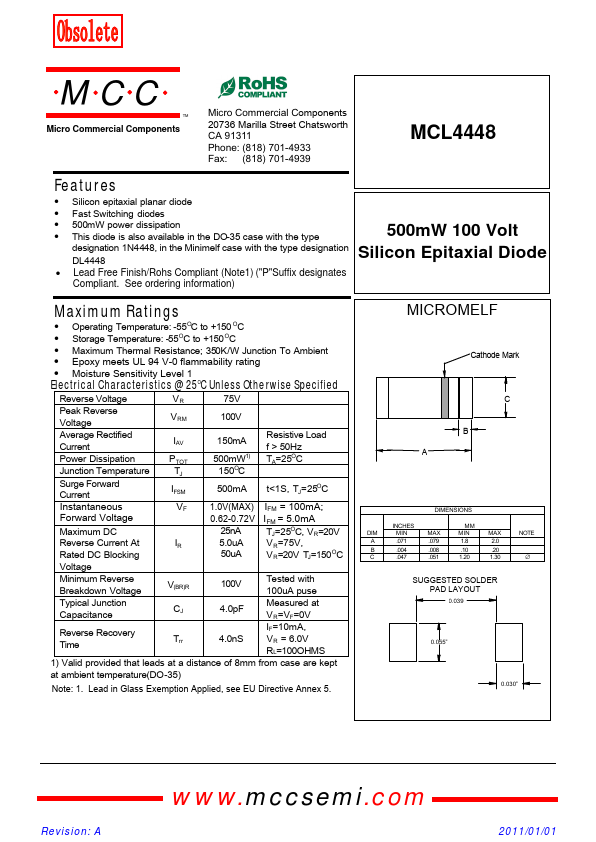

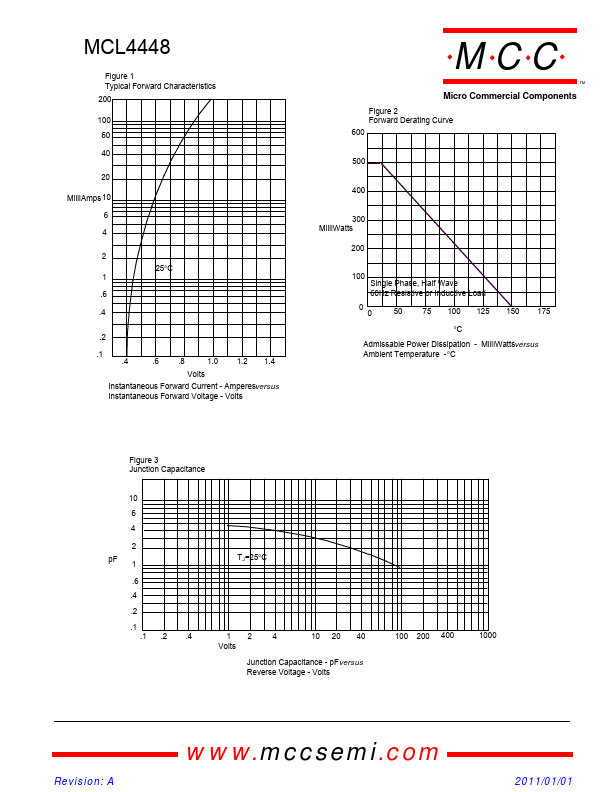

Additional preview pages of the MCL4448 datasheet.

Silicon epitaxial planar diode.
Fast Switching diodes.
500mW power dissipation.
This diode is also available in the DO-35 case with the type 500mW 100 Volt designation 1N4448, in the Minimelf case with the type designation Silicon Epitaxial Diode DL4448.
Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information) Maximum Ratings.
Operating Temperature: -55OC to +150 OC.
Storage Temper.
