MBR8040, MBR8020 - 80 Amp Schottky Barrier Rectifier

Name: MBR8040
SKU: MBR8040-1125555

MCC

The MBR8040 by MCC is a 80 Amp Schottky Barrier Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	MBR8040, MBR8020
Manufacturer	MCC
File Size	112.00 KB
Description	80 Amp Schottky Barrier Rectifier
Datasheet	MBR8020-MCC.pdf
Note	This datasheet PDF includes multiple part numbers: MBR8040, MBR8020. Please refer to the document for exact specifications by model.

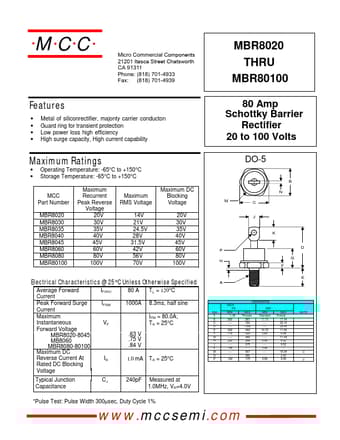

Additional preview pages of the MBR8040 datasheet.

Metal of siliconrectifier, majonty carrier conducton.
Guard ring for transient protection.
Low power loss high efficiency.
High surge capacity, High current capability 80 Amp Schottky Barrier Rectifier 20 to 100 Volts Maximum Ratings.
Operating Temperature: -65°C to +150°C.
Storage Temperature: -65°C to +150°C MCC Part Number MBR8020 MBR8030 MBR8035 MBR8040 MBR8045 MBR8060 MBR8080 MBR80100 Maximum Recurrent Peak Reverse Voltage 20V 30V 3.
