MBR15100, MBR1530 - Schottky Barrier Rectifier

Name: MBR15100
SKU: MBR15100-582534

MCC

The MBR15100 by MCC is a Schottky Barrier Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	MBR15100, MBR1530
Manufacturer	MCC
File Size	173.14 KB
Description	Schottky Barrier Rectifier
Datasheet	MBR1530_MCC.pdf
Note	This datasheet PDF includes multiple part numbers: MBR15100, MBR1530. Please refer to the document for exact specifications by model.

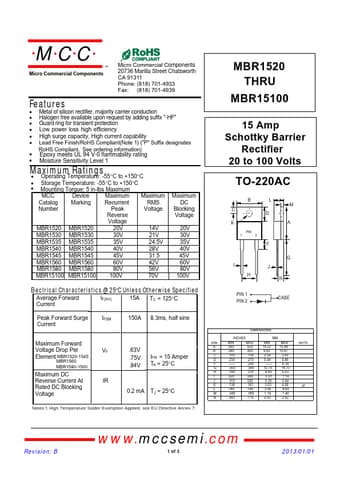

Additional preview pages of the MBR15100 datasheet.

omponents 21201 Itasca Street Chatsworth !"# $ % !"# MBR1520 THRU MBR15100 15 Amp Schottky Barrier Rectifier 20 to 100 Volts Metal of siliconrectifier, majonty carrier conducton Guard ring for transient protection Low power loss high efficiency High surge capacity, High current capability Maximum Ratings.
Operating Temperature: -55 °C to +150°C Storage Temperature: -55°C.
