MBR12020 - (MBR12020 - MBR120100) Schottky Barrier

Download the MBR12020 datasheet PDF. This datasheet also covers the MBR120100 variant, as both devices belong to the same (mbr12020 - mbr120100) schottky barrier family and are provided as variant models within a single manufacturer datasheet.

Features

  • Metal of siliconrectifier, majonty carrier conducton Guard ring for transient protection Low power loss high efficiency High surge capacity, High current capability Maximum Ratings.
  • Operating Junction Temperature: -55°C to +175°C Storage Temperature: -55°C to +175°C Typical Thermal Resistance per leg 0.8°C/W Junction to Case Maximum Maximum DC MCC Recurrent Maximum Blocking Part Number Peak Reverse RMS Voltage Voltage Voltage.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MBR120100_MCC.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MBR12020 (MBR12020 - MBR120100R) SCHOTTKY DIODES TRANSYS
MBR12020CT (MBR12020CT - MBR120100CTR) SCHOTTKY DIODES TRANSYS
MBR12020CT (MBR12020CT - MBR12040CTR) Schottky Power Diode Naina Semiconductor
MBR12020CT Silicon Power Schottky Diode America Semiconductor
MBR12020CT Silicon Power Schottky Diode GeneSiC

Other Datasheets by Micro Commercial Components

Part Number Description
MBR120100 (MBR12020 - MBR120100) Schottky Barrier
MBR12030 (MBR12020 - MBR120100) Schottky Barrier
MBR12035 (MBR12020 - MBR120100) Schottky Barrier
MBR12040 (MBR12020 - MBR120100) Schottky Barrier
MBR12045 (MBR12020 - MBR120100) Schottky Barrier

Full PDF Text Transcription

Click to expand full text

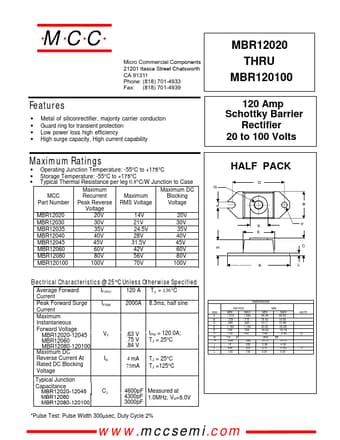

www.DataSheet4U.com MCC   omponents 21201 Itasca Street Chatsworth    !"# $ %    !"# MBR12020 THRU MBR120100 120 Amp Schottky Barrier Rectifier 20 to 100 Volts HALF PACK D G Features • • • • Metal of siliconrectifier, majonty carrier conducton Guard ring for transient protection Low power loss high efficiency High surge capacity, High current capability Maximum Ratings • • • Operating Junction Temperature: -55°C to +175°C Storage Temperature: -55°C to +175°C Typical Thermal Resistance per leg 0.8°C/W Junction to Case Maximum Maximum DC MCC Recurrent Maximum Blocking Part Number Peak Reverse RMS Voltage Voltage Voltage MBR12020 20V 14V 20V MBR12030 30V 21V 30V MBR12035 35V 24.5V 35V MBR12040 40V 28V 40V MBR12045 45V 31.
