LSR05 - ESD Protector

MCC

The LSR05 by MCC is a ESD Protector. Below is the official datasheet preview.

📥 Download Datasheet

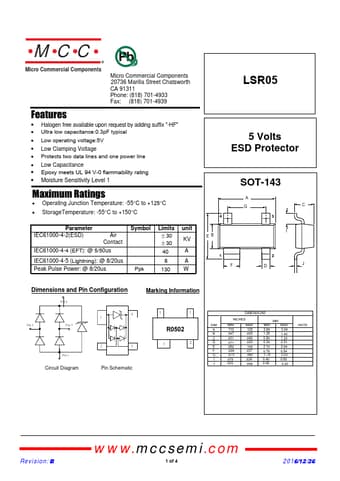

LSR05 ESD Protector by MCC - Datasheet Preview — Official preview page of the LSR05 ESD Protector datasheet (MCC).

Datasheet Details

Part number	LSR05
Manufacturer	MCC
File Size	274.63 KB
Description	ESD Protector
Datasheet	LSR05-MCC.pdf
Additional preview pages of the LSR05 datasheet.

LSR05 Product details

Features

Halogen free available upon request by adding suffix "-HF".
Ultra low capacitance:0.3pF typical.
Low operating voltage:5V.
Low Clamping Voltage.
Protects two data lines and one power line.
Low Capacitance.
Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1 Maximum Ratings.
Operating Junction Temperature: -55°C to +125°C.
StorageTemperature: -55°C to +150°C Parameter Symbol Limits un.
