MCC
Micro Commercial Components
TM
omponents 20736 Marilla Street Chatsworth !"# $
% !"#

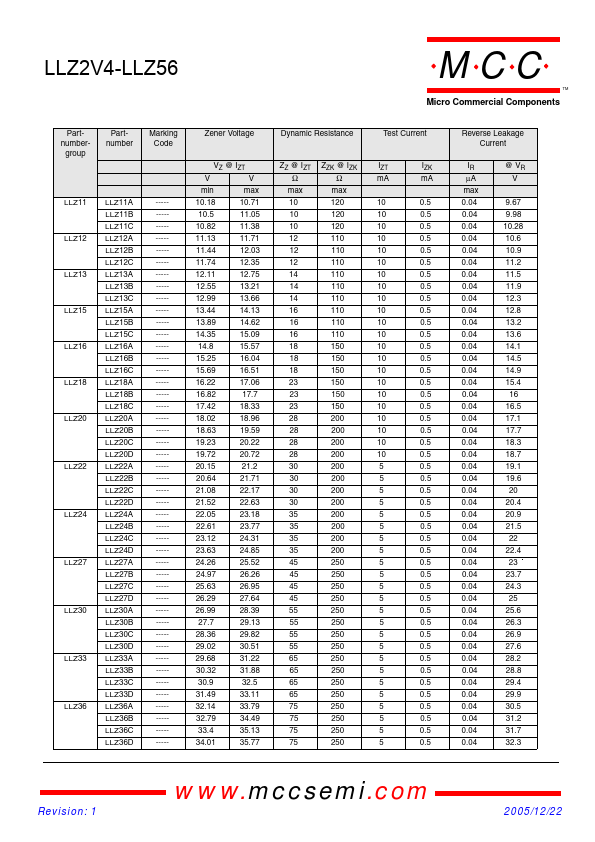

LLZ2V4 THRU LLZ56
500mW Silicon Zener Diodes
MINIMELF
Cathode Mark
Features
• • • Hermetically Sealed Glass Package Zener Voltage 2.4V to 56V For Surface Mount Applications
Mechanical Data
• • • Case: hermetically sealed glass Polarity: Cathode indicated by polarity band
Junction ambient R thJA :500 K/W (Note:2)
Maximum Ratings (Note:1)
Symbol Max. Steady State Power Dissipation at Junction Temperature Storage Temperature Range PD TJ TSTG Value 500 175 -65 to 175 Units
B
C
mW ℃ ℃
DIM A B C INCHES MIN .134 .008 .055
A
DIMENSIONS MM MIN 3.40 .20 1.
