GS1DE - Silicon Rectifier

Product Overview

MCC

📥 Download Datasheet

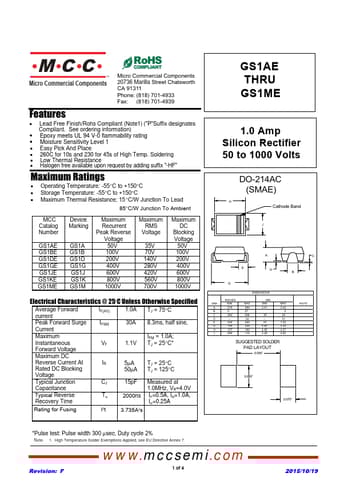

GS1DE Silicon Rectifier by MCC - Datasheet Preview — Datasheet preview – GS1DE

Datasheet Details

Part number	GS1DE
Manufacturer	MCC
File Size	272.76 KB
Description	Silicon Rectifier
Datasheet	GS1DE Datasheet
Note	This datasheet PDF includes multiple part numbers: GS1DE, GS1AE. Please refer to the document for exact specifications by model.
Additional preview pages of the GS1DE datasheet.

Product details

Features

Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information).
Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1.
Easy Pick And Place.
260C for 10s and 230 for 45s of High Temp. Soldering.
Low Thermal Resistance.
Halogen free available upon request by adding suffix "-HF" Maximum Ratings.
Operating Temperature: -55°C to +150°C.
Storage Temperature: -55°C to.
