GBPC3508 - 35 Amp Glass Passivated Single Phase Bridge Rectifier

Download the GBPC3508 datasheet PDF. This datasheet also covers the GBPC35005 variant, as both devices belong to the same 35 amp glass passivated single phase bridge rectifier family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Halogen free available upon request by adding suffix "-HF".
  • Glass Passivated Chip Junction.
  • Surge Rating Of 400 Amps.
  • Mounting Hole For #10 Screw.
  • Any Mounting Position.
  • With heat sink on top.
  • Epoxy meets UL 94 V-0 flammability rating.
  • Moisture Sensitivity Level 1.
  • Lead Free Finish/RoHS Compliant(Note 1)("P" Suffix designates RoHS Compliant. See ordering information) Maximum Ratings.
  • Operating Temperature.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GBPC35005-MCC.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
GBPC3508 Glass Passivated Single-Phase Bridge Rectifier Vishay
GBPC3508 HIGH CURRENT SILICON BRIDGE RECTIFIER PAN-JIT
GBPC3508 Single-Phase 35.0A Glass Passivated Bridge Rectifier Sangdest Microelectronics
GBPC3508 35A GLASS PASSIVATED BRIDGE RECTIFIER Diodes
GBPC3508 Single Phase Bridge Rectifier MEI SEMI

Other Datasheets by Micro Commercial Components

Part Number Description
GBPC35005 35 Amp Glass Passivated Single Phase Bridge Rectifier
GBPC3501 35 Amp Glass Passivated Single Phase Bridge Rectifier
GBPC3502 35 Amp Glass Passivated Single Phase Bridge Rectifier
GBPC3504 35 Amp Glass Passivated Single Phase Bridge Rectifier
GBPC3506 35 Amp Glass Passivated Single Phase Bridge Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

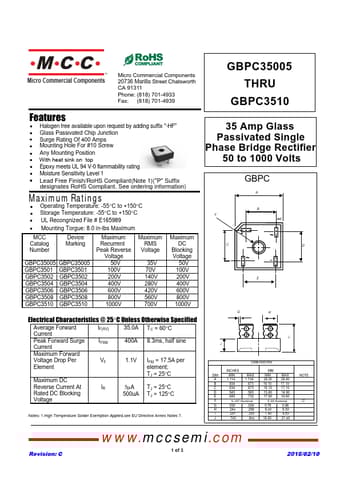

MCC TM Micro Commercial Components   omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# GBPC35005 THRU GBPC3510 Features • Halogen free available upon request by adding suffix "-HF" • Glass Passivated Chip Junction • Surge Rating Of 400 Amps • Mounting Hole For #10 Screw • Any Mounting Position • With heat sink on top • Epoxy meets UL 94 V-0 flammability rating • Moisture Sensitivity Level 1 • Lead Free Finish/RoHS Compliant(Note 1)("P" Suffix designates RoHS Compliant. See ordering information) Maximum Ratings • Operating Temperature: -55°C to +150°C • Storage Temperature: -55°C to +150°C • UL Recongnized File # E165989 • Mounting Torgue: 8.
