FR3BB - 3 Amp Fast Recovery Rectifier

Download the FR3BB datasheet PDF. This datasheet also covers the FR3AB variant, as both devices belong to the same 3 amp fast recovery rectifier family and are provided as variant models within a single manufacturer datasheet.

Description

Note: 1.

Features

  • Halogen Free. “Green” Device (Note 1).
  • Fast Reverse Recovery Time.
  • Glass Passivated Chip Junction.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Moisture Sensitivity Level 1.
  • Lead Free Finish/RoHS Compliant (Note 2)("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25°C (Unless Otherwise Specified) Parameter Peak Repetitive Reverse Voltage Working Peak Reverse Voltage Value Symbol FR FR FR FR FR FR FR Unit 3AB.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (FR3AB_MCC.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
FR3BB SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES Sunmate
FR3BB FAST RECOVERY PLASTIC RECTIFIER GRANDE
FR3BB FAST SWITCHING SURFACE MOUNT RECTIFIER YS
FR3B 3A Surface Mount Fast Recovery Rectifier UPM
FR3B 3.0A SURFACE MOUNT GLASS PASSIVATED FAST RECOVERY DIODE WON-TOP

Other Datasheets by Micro Commercial Components

Part Number Description
FR3B Fast Recovery Silicon Rectifier
FR301 3 Amp Fast Recovery Rectifier
FR301GP 3 Amp Fast Recovery Rectifier
FR302 3 Amp Fast Recovery Rectifier
FR302GP 3 Amp Fast Recovery Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

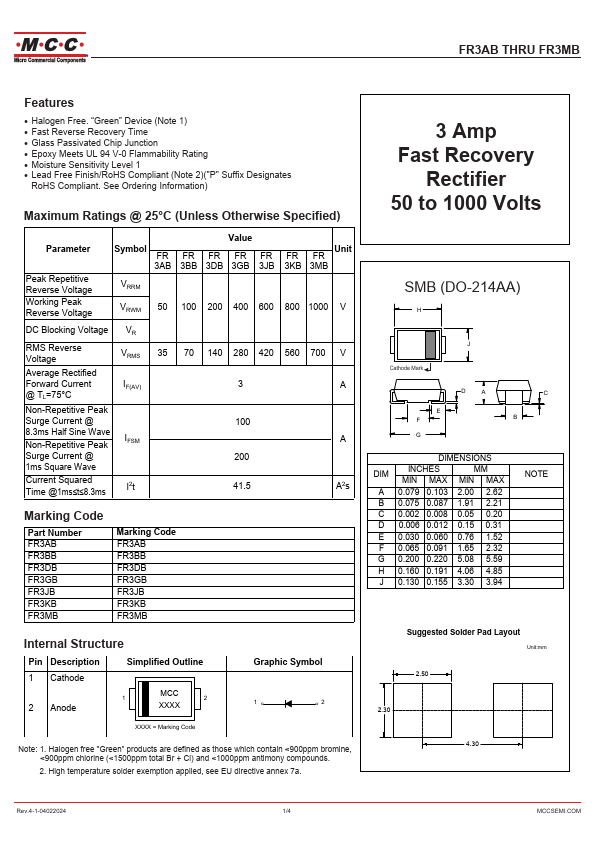

FR3AB THRU FR3MB Features • Halogen Free. “Green” Device (Note 1) • Fast Reverse Recovery Time • Glass Passivated Chip Junction • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • Lead Free Finish/RoHS Compliant (Note 2)("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25°C (Unless Otherwise Specified) Parameter Peak Repetitive Reverse Voltage Working Peak Reverse Voltage Value Symbol FR FR FR FR FR FR FR Unit 3AB 3BB 3DB 3GB 3JB 3KB 3MB VRRM VRWM 50 100 200 400 600 800 1000 V DC Blocking Voltage VR RMS Reverse Voltage VRMS 35 70 140 280 420 560 700 V Average Rectified Forward Current IF(AV) 3 A @ TL=75°C Non-Repetitive Peak Surge Current @ 8.
