ESD1551P4 - ESD Protection

Download the ESD1551P4 datasheet PDF (ESD1051P4 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for esd protection.

Features

  • Uni-Directional ESD Protection of One Line.
  • High Peak Pulse Current Capability.
  • Halogen Free. “Green” Device (Note 1).
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings.
  • Operating Junction Temperature Range: -55°C to +125°C.
  • Storage Temperature Range: -55°C to +150°C MCC Part Number ESD1051P4 ESD1251P4 ESD1551P4 ESD1851P4 ESD24.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ESD1051P4-MCC.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by MCC

Full PDF Text Transcription

Click to expand full text

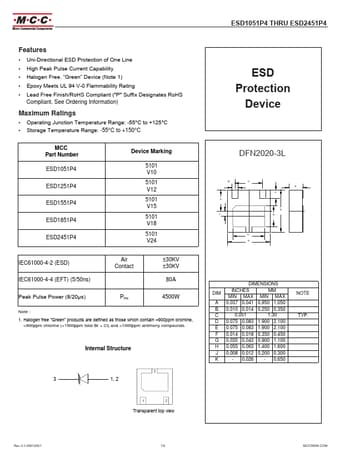

ESD1051P4 THRU ESD2451P4 Features • Uni-Directional ESD Protection of One Line • High Peak Pulse Current Capability • Halogen Free. “Green” Device (Note 1) • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings • Operating Junction Temperature Range: -55°C to +125°C • Storage Temperature Range: -55°C to +150°C MCC Part Number ESD1051P4 ESD1251P4 ESD1551P4 ESD1851P4 ESD2451P4 Device Marking 5101 V10 5101 V12 5101 V15 5101 V18 5101 V24 IEC61000-4-2 (ESD) IEC61000-4-4 (EFT) (5/50ns) Air Contact ±30KV ±30KV 80A Peak Pulse Power (8/20μs) PPK 4500W Note : 1.
