ER1B-L, ER1A-L - Super Fast Recovery Rectifier

Datasheet Details

Part number	ER1B-L, ER1A-L
Manufacturer	MCC
File Size	751.65 KB
Description	Super Fast Recovery Rectifier

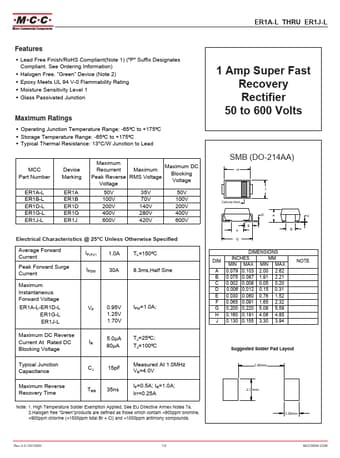

Datasheet	ER1A-L-MCC.pdf
Note	This datasheet PDF includes multiple part numbers: ER1B-L, ER1A-L. Please refer to the document for exact specifications by model.

Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix Designates Compliant. See Ordering Information).
Halogen Free. “Green” Device (Note 2).
Epoxy Meets UL 94 V-0 Flammability Rating.
Moisture Sensitivity Level 1.
Glass Passivated Junction Maximum Ratings.
Operating Junction Temperature Range: -65⁰C to +175⁰C.
Storage Temperature Range: -65⁰C to +175⁰C.
Typical Thermal Resistance: 13°C/W Junction to Lead MCC Part Number ER.
